MPPT Solar Controller 30A

12V/24V 30A MPPT Solar Charge Controller with Dual USB & LCD Display | High-Efficiency Solar Regulator

Optimize your solar power system’s performance with this high-performance 12V/24V MPPT Solar Charge Controller. Built with advanced 32-bit industrial-grade computing technology and an intelligent MPPT control algorithm, this controller rapidly tracks the maximum power point in real time to maximize solar panel efficiency — ensuring you get the most out of your photovoltaic array in any environment.

Designed for wide-ranging applications including home solar systems, garden lighting, traffic systems, communication stations, and RV setups, this smart regulator also features a user-friendly LCD screen and dual USB ports for added convenience.

Features:

• High-Efficiency MPPT Technology: Rapidly tracks and locks onto the maximum power point with ≥99% tracking efficiency and ≤98% conversion efficiency.
• Three-Stage Adaptive Charging: Digitally controlled three-stage (bulk, absorption, and float) charging extends battery life and enhances system performance.
• Wide Battery Compatibility: Supports lead-acid batteries, AGM, GEL, open, ternary lithium, and lithium iron phosphate batteries.
• Comprehensive Protection System: Includes built-in short-circuit, open-circuit, overload, reverse polarity, reverse current protections, and low heat production for safe and reliable operation.

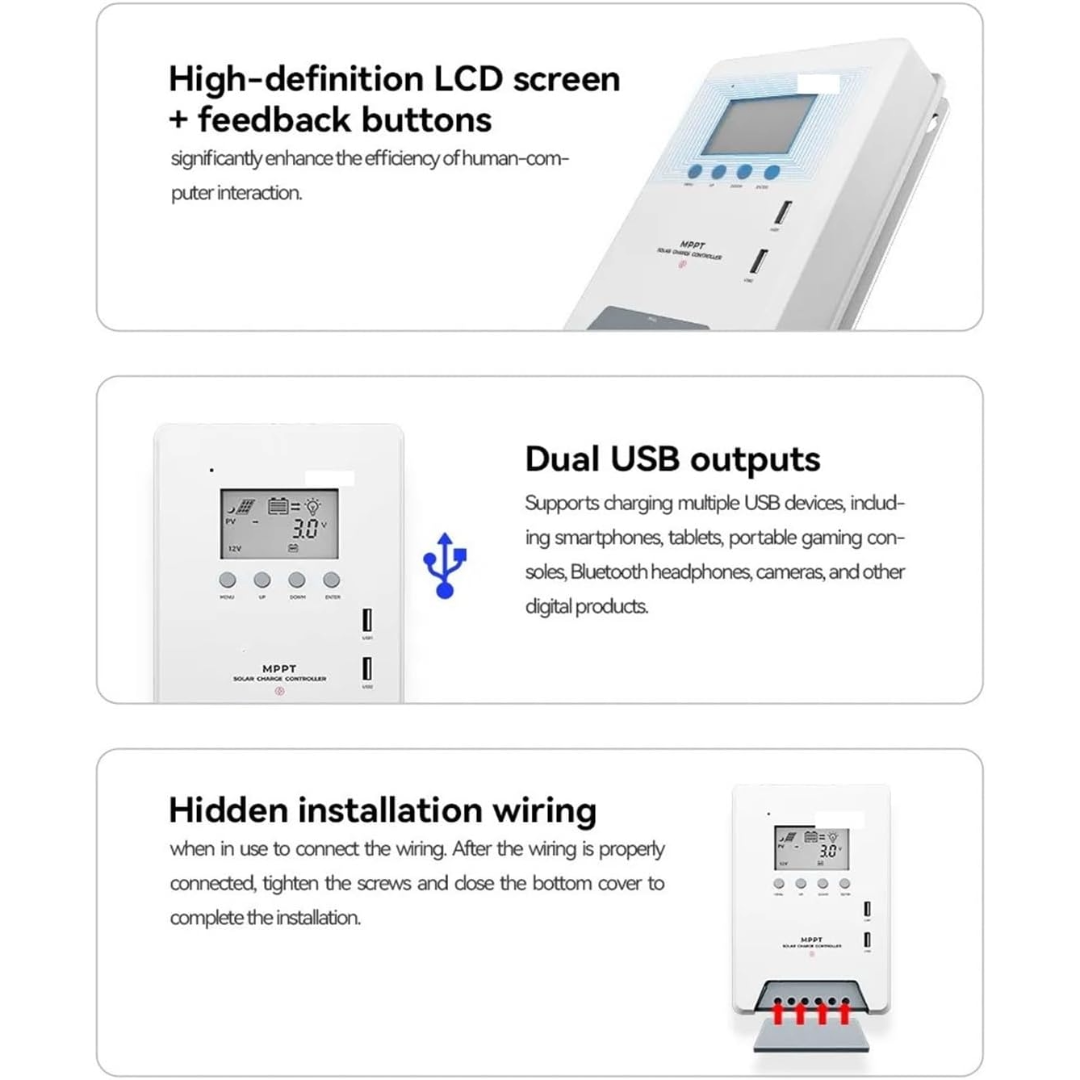

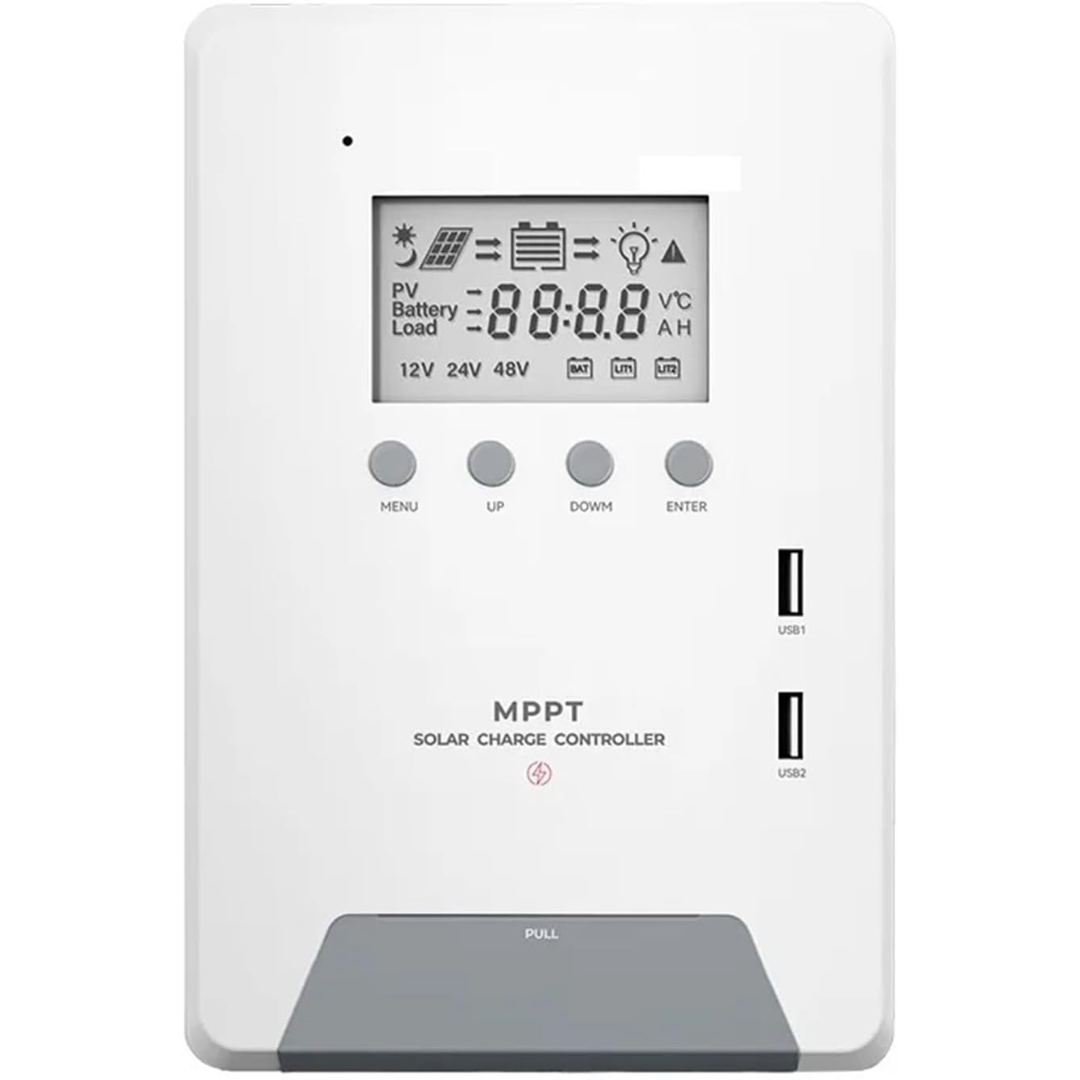

• User-Friendly Interface: Large LCD display and four-button control panel improve ease of operation and system monitoring.
• Dual USB Charging Ports: Conveniently charge mobile devices with 5V/3A max output while managing your solar setup.
• Intelligent Temperature Control: Maintains safe operating temperatures in high-heat environments, extending the life of both the controller and connected batteries.

Specifications:

• Model: DM130
• Material: ABS
• Rated Charge Current: 30A
• Rated Discharge Current: 10A
• USB Output: 5V / 3A (max)
• Max PV Open Circuit Voltage: 80V
• Max PV Input Power: 400W (12V), 800W (24V)
• MPPT Tracking Efficiency: ≥99%
• Conversion Efficiency: ≤98%
• System Voltage Recognition: Auto (12V / 24V)
• Item Size: 195 × 132 × 63 mm / 7.7 × 5.2 × 2.5 in
• Item Weight: 800g / 1.8lb
• Package Size: 244 × 174 × 95 mm / 9.6 × 6.9 × 3.7 in
• Package Weight: 1000g / 2.2lb
• Color: White

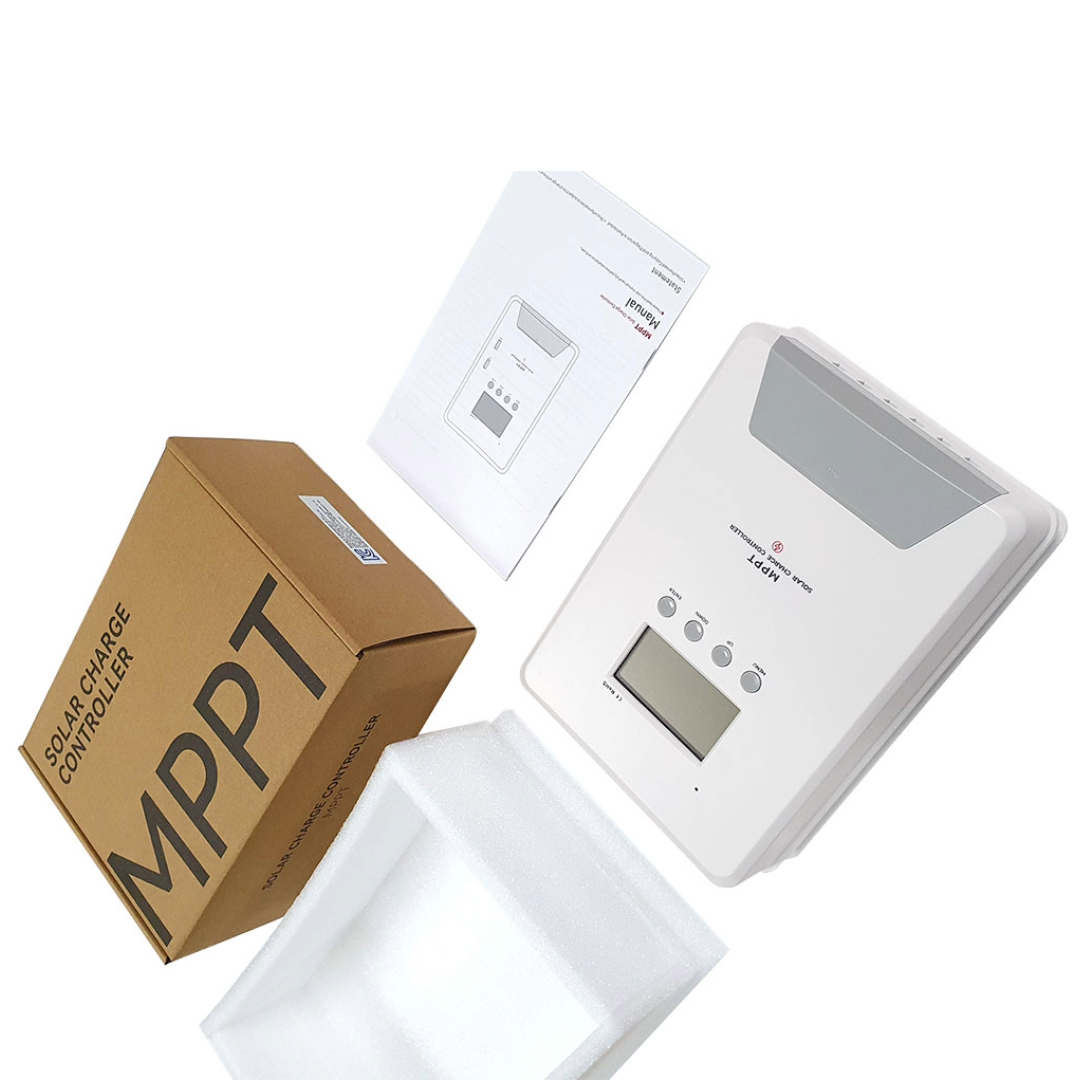

Package Includes:

• 1 x 30A MPPT Solar Charge Controller
• 1 x User Manual

Improve your solar energy system’s reliability, battery health, and charging efficiency with this advanced MPPT Solar Charge Controller — an essential upgrade for any off-grid or grid-tied solar setup.
