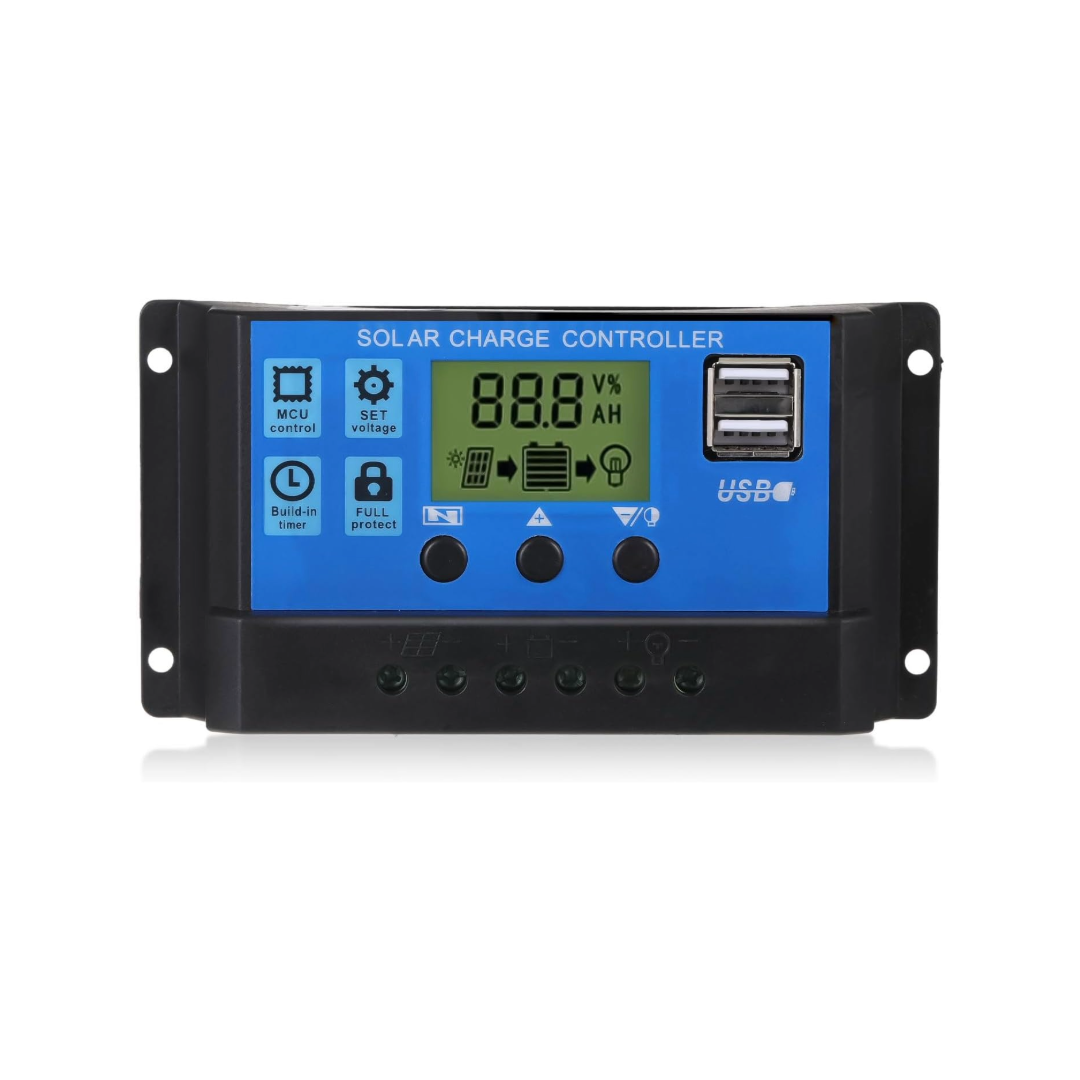

60A Solar Panel Regulator Charge Controller & Timer

This 60A charge controller is compatible with 12V 24V system. 12V /24V Input

Full 3-stage PWM charge (boost, ABS, equalization, float). Dual USB can give your electronic product maximum 5V/2A.

Backlight, LCD display, PV/battery/load working status. Floating voltage/LVD/LVR/load timer can be conveniently adjusted as needed. ADD function: current, charge and discharge.

Suitable for lead-acid batteries (open, AGM, GEL), 3 adjustable charging modes: light/light + timer/manual. Load should be DC.

PWM Charge Controller Protection: Memory Shutdown / Dual MOSFET Reverse Current / Overheating / Low Voltage Discharge / Short Circuit / Idle / Overcharge Protection.

Features:

1. Built-in industrial microcontroller.
2. LCD display
3. PWM charging mode.
4. Dual USB port
5. Built-in short circuit protection.
6. No load protection.
7. Reverse polarity protection.
8. Overload protection.
9. Dual MOSFET reverse current protection.

Parameters:

1. Floating charging voltage (HVD 13.3V-15V)
2. Low voltage recovery (LVD 11V-13.5V). Low voltage protection (RVD 9V-12.3V)
3. Charging mode (24 hours, 1-23 hours, 0 hours).
4. Battery option (gel, lead acid, flooded)

Specification:

Type: Basic Version

Size: 133 x 70 x 34mm

Model: RBL-60A Charge Controller

Battery voltage: 12V/24V car

Charging current: 60A

Discharge Current: 60A

Max. Solar Input: <50V

Balance: B01 sealed 14.4V B02 Gel 14.2V B03 Flood Light 14.6V

Float Charge: 13.7V (Standard, Adjustable)

Discharge Stop: 10.7V (Standard, Adjustable)

12V battery system: solar panel max. 24 VDC input (Voc), 24 battery system: solar panel maximum 48 VDC input (Voc).

12 V battery system max. 720 W solar panel input, 24 V battery system max. 1440W Solar Panel Input

Discharge reconnection: 12.6V (standard, adjustable)

USB Output: 5V/3A

Self-consumption: <10mA

Operating temperature: -35 to +60 °C.

Package includes:

1 x 60A Solar Charge Controller

1 x English User Manual
