MPPT Solar Controller 60A

60A MPPT Solar Charge Controller – LM6048 | Intelligent DSP Regulator with LCD Display & Multiple Protections

Maximize your solar power system’s efficiency with the LM6048 60A MPPT Solar Charge Controller, a high-performance smart regulator designed for superior energy conversion, reliability, and protection. Engineered with advanced DSP control and MPPT technology, this Solar Charge Controller 60A achieves up to 98% conversion efficiency and 99% tracking accuracy, ensuring you extract the most energy from your solar panels.

Perfect for caravans, RVs, boats, solar homes, and off-grid systems, the MPPT Solar Charge Controller offers full battery compatibility, intelligent heat dissipation, and an easy-to-read LCD display for real-time monitoring and control.

Features:

• High-Performance DSP Controller: The LM6048 MPPT Solar Charge Controller uses a smart DSP chip for precise tracking and optimized battery charging.
• Advanced MPPT Technology: With MPPT efficiency above 99% and conversion efficiency up to 98%, this Solar Charge Controller 60A ensures maximum power output from your solar panels.
• Versatile Battery Compatibility: The MPPT Solar Charge Controller supports lithium, Li(NiCoMn)O₂, gel, sealed, vented, and user-defined battery types.
• Automatic Voltage Recognition: The Solar Charge Controller 60A intelligently detects and adjusts to 12V, 24V, 36V, or 48V battery systems automatically.

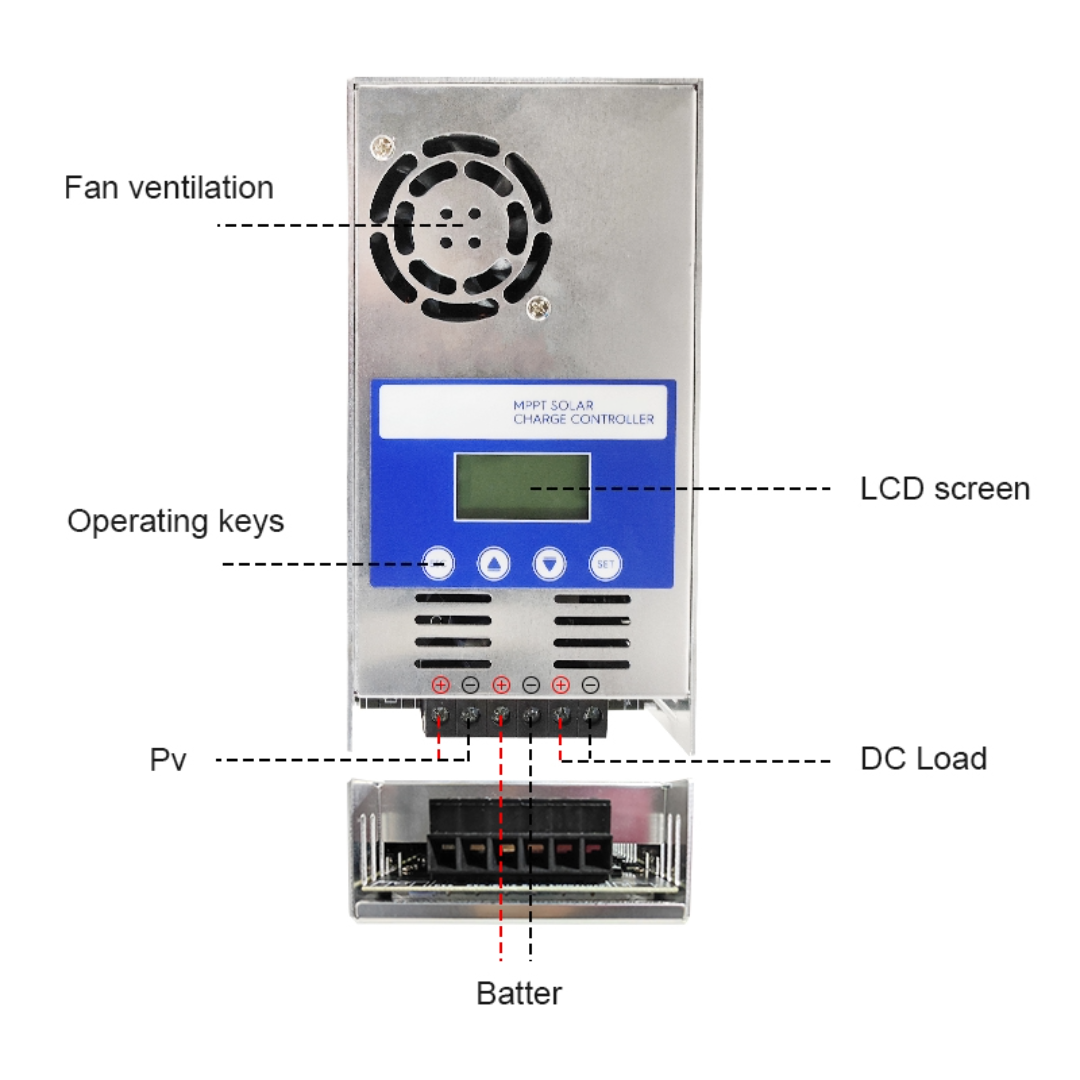

• Real-Time LCD Display: The LM6048 Controller provides clear readings for PV voltage, output power, charge current, mode, and temperature.
• Intelligent Heat Dissipation: A temperature-controlled fan activates at >45°C, ensuring the MPPT Solar Charge Controller remains cool and stable during heavy operation.
• Durable Aluminium Housing: Built with an aluminum alloy body, the Solar Charge Controller 60A is rugged, corrosion-resistant, and made for long-term outdoor use.
• Multiple Safety Protections: Includes protection against overload, reverse polarity, short circuit, reverse charging, lightning, and overheating.
• Water-Resistant Design: With an IP21-rated enclosure, this MPPT Solar Charge Controller performs safely in various environments.

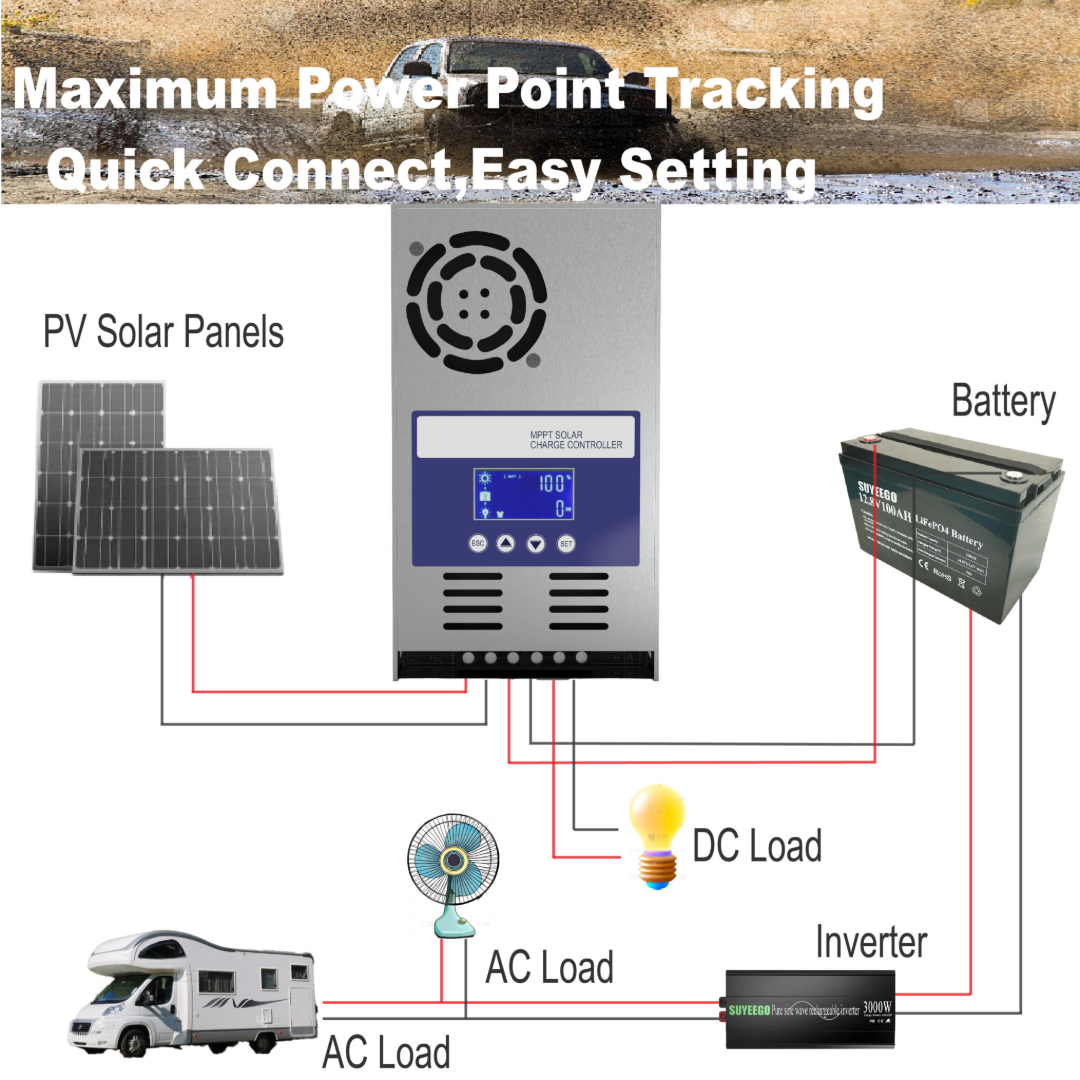

• Wide Application Range: Perfect for off-grid solar systems in caravans, campers, boats, homes, and commercial setups.

Applications:

• Solar Homes & Cabins: Efficient energy regulation using the Solar Charge Controller 60A for household power systems.
• RV & Caravan Systems: The LM6048 MPPT Solar Charge Controller maintains steady battery charging while travelling.
• Boats & Marine Use: Reliable Solar Charge Controller 60A performance in marine environments.
• Off-Grid Farms & Workshops: Power storage optimization with the MPPT Solar Charge Controller.
• Commercial Solar Systems: Smart charging control for larger PV setups using the LM6048 Controller.
• Portable Solar Kits: Compact, efficient, and easy to integrate into small-scale off-grid systems.

Specifications:

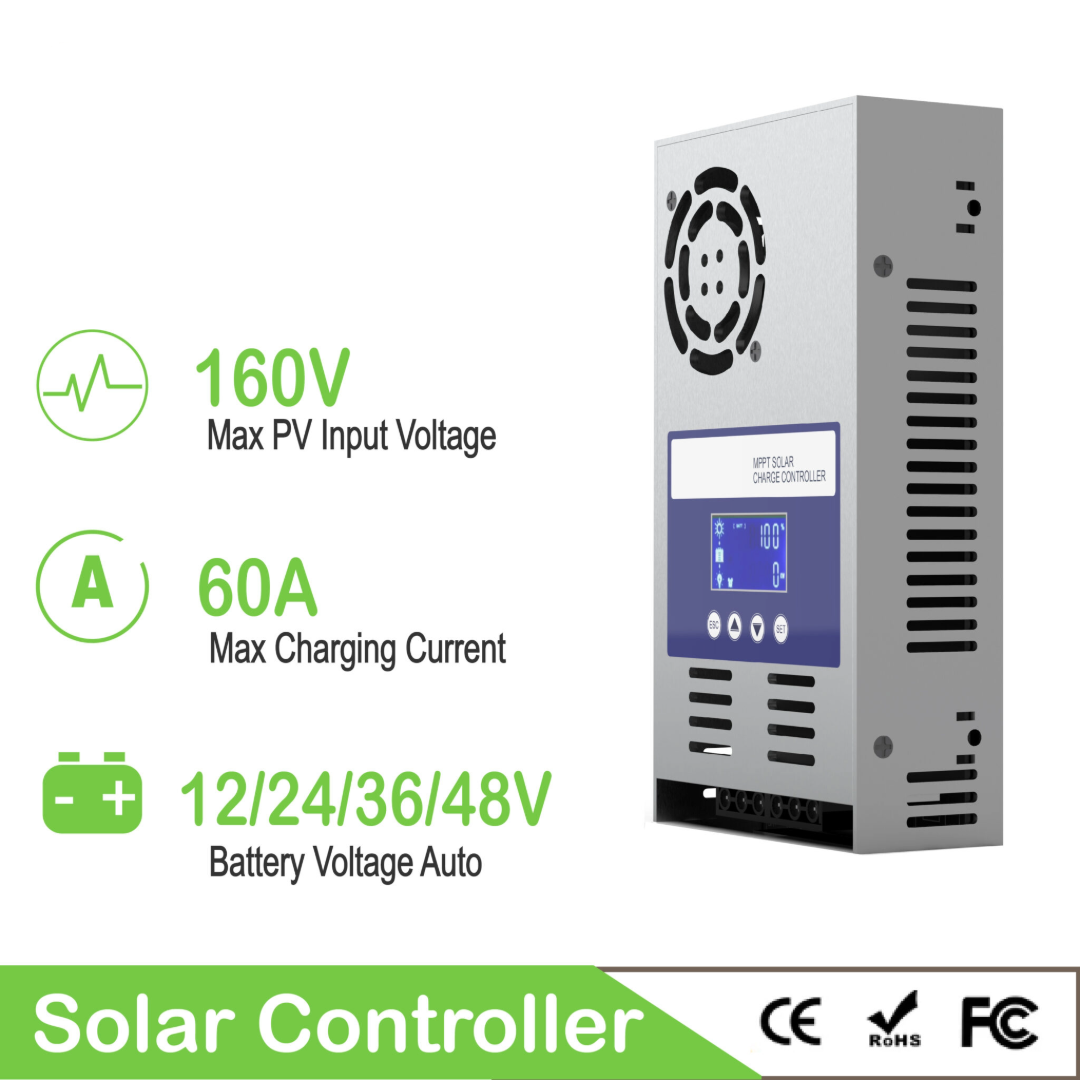

• Model: LM6048
• Material: Aluminium Alloy
• System Voltage: 12V / 24V / 36V / 48V (Auto Recognition)
• Charging Current: 30A / 60A
• No-Load Loss: ≤0.4W
• Max PV Input Voltage: 180V (25°C) / 150V (-25°C)
• Battery Voltage Range: 9V – 70V
• MPPT Efficiency: ≥99%
• Conversion Efficiency: ≤98%
• Rated Load Current: 20A
• Max PV System Input Power:
  • 12V System: 720W
  • 24V System: 1440W
  • 36V System: 2160W
  • 48V System: 2880W
• Temperature Compensation: -2mV/°C/2V (default)
• Operating Temperature: -10°C to +65°C
• Waterproof Rating: IP21
• Altitude Limit: ≤3000m

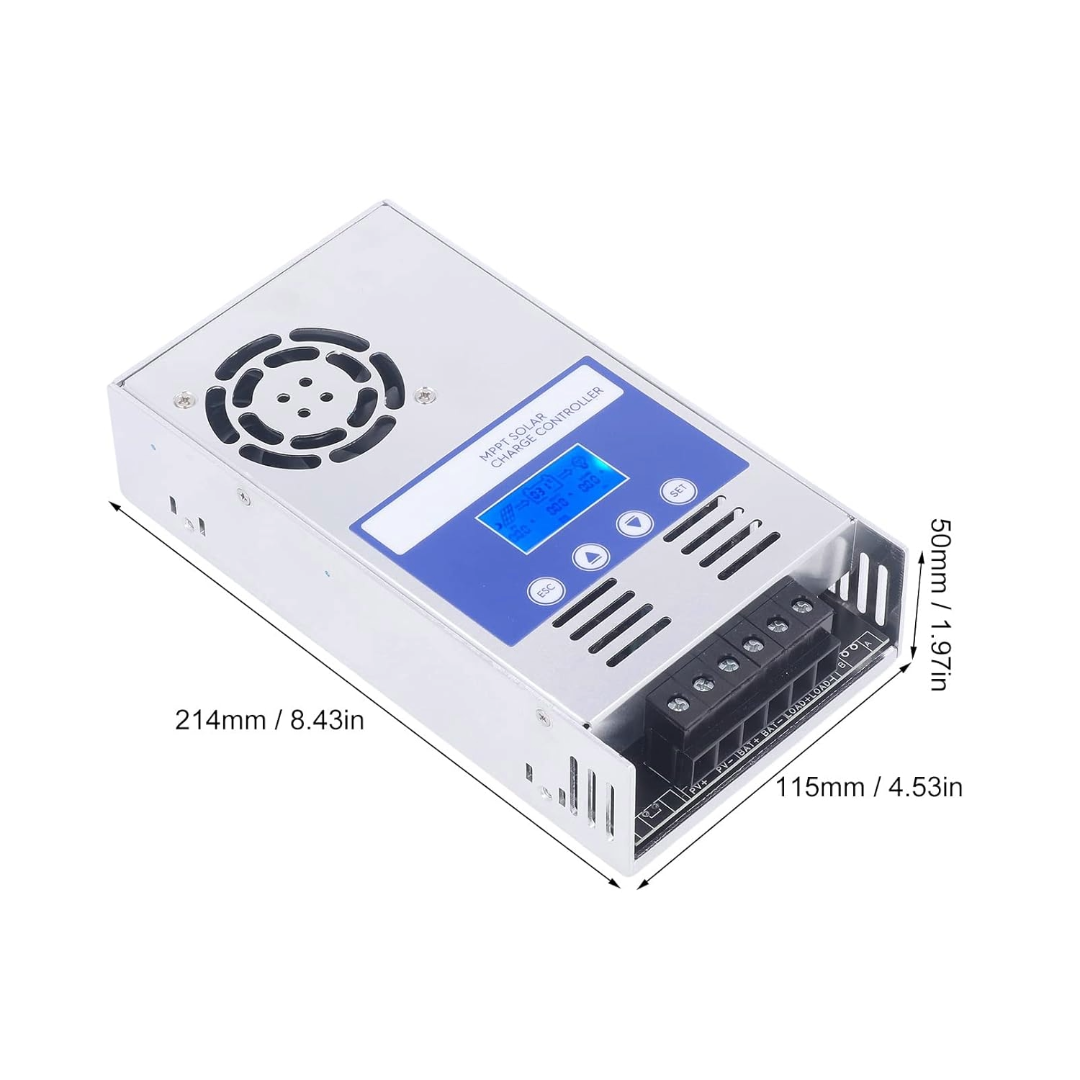

• Dimensions: 214 × 115 × 50 mm

Package Includes:

• 1 × LM6048 60A MPPT Solar Charge Controller
• 4 × Mounting Screws
• 4 × Mounting Holders
• 1 × User Manual

The LM6048 60A MPPT Solar Charge Controller provides professional-grade performance, intelligent power regulation, and comprehensive protection for your solar power system.
