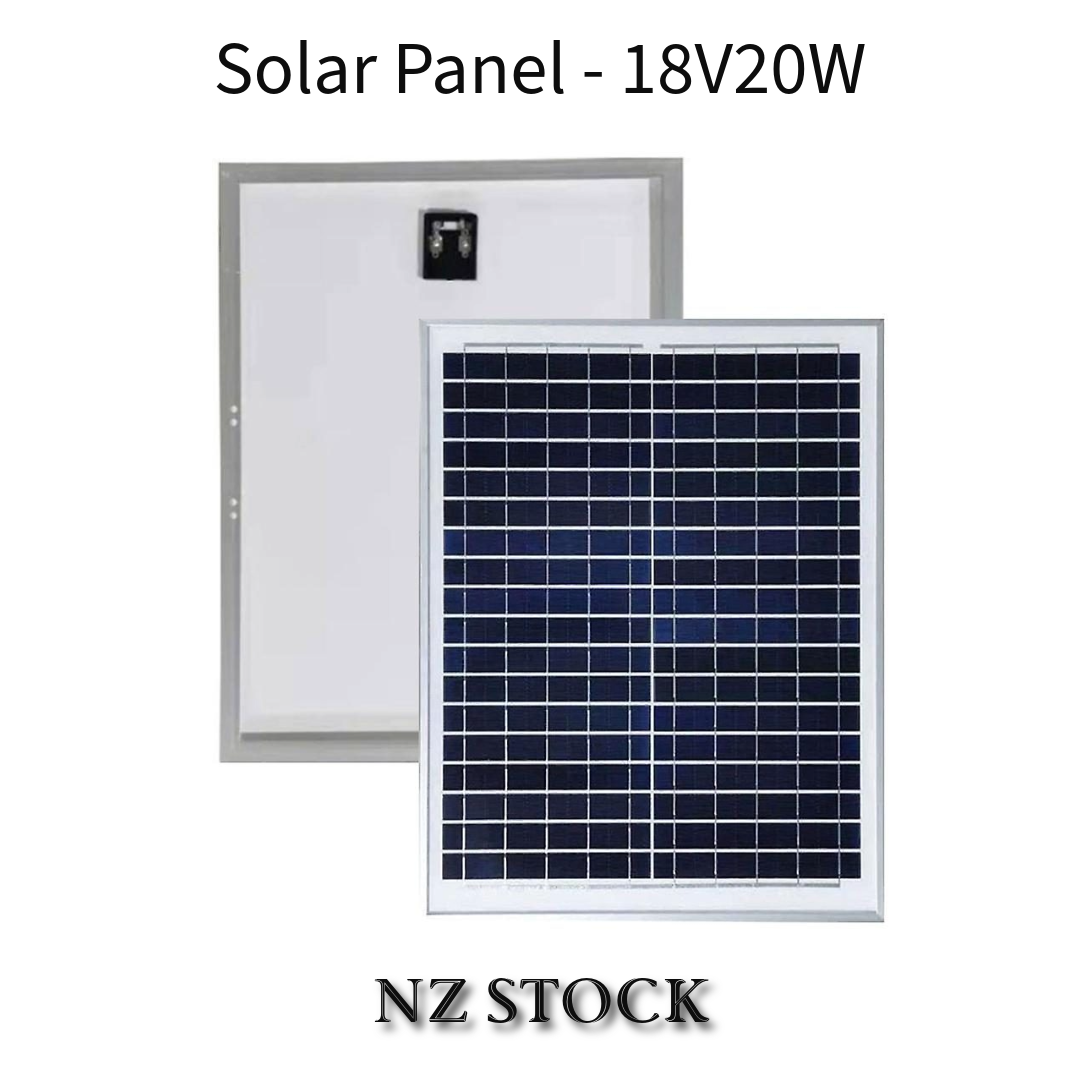

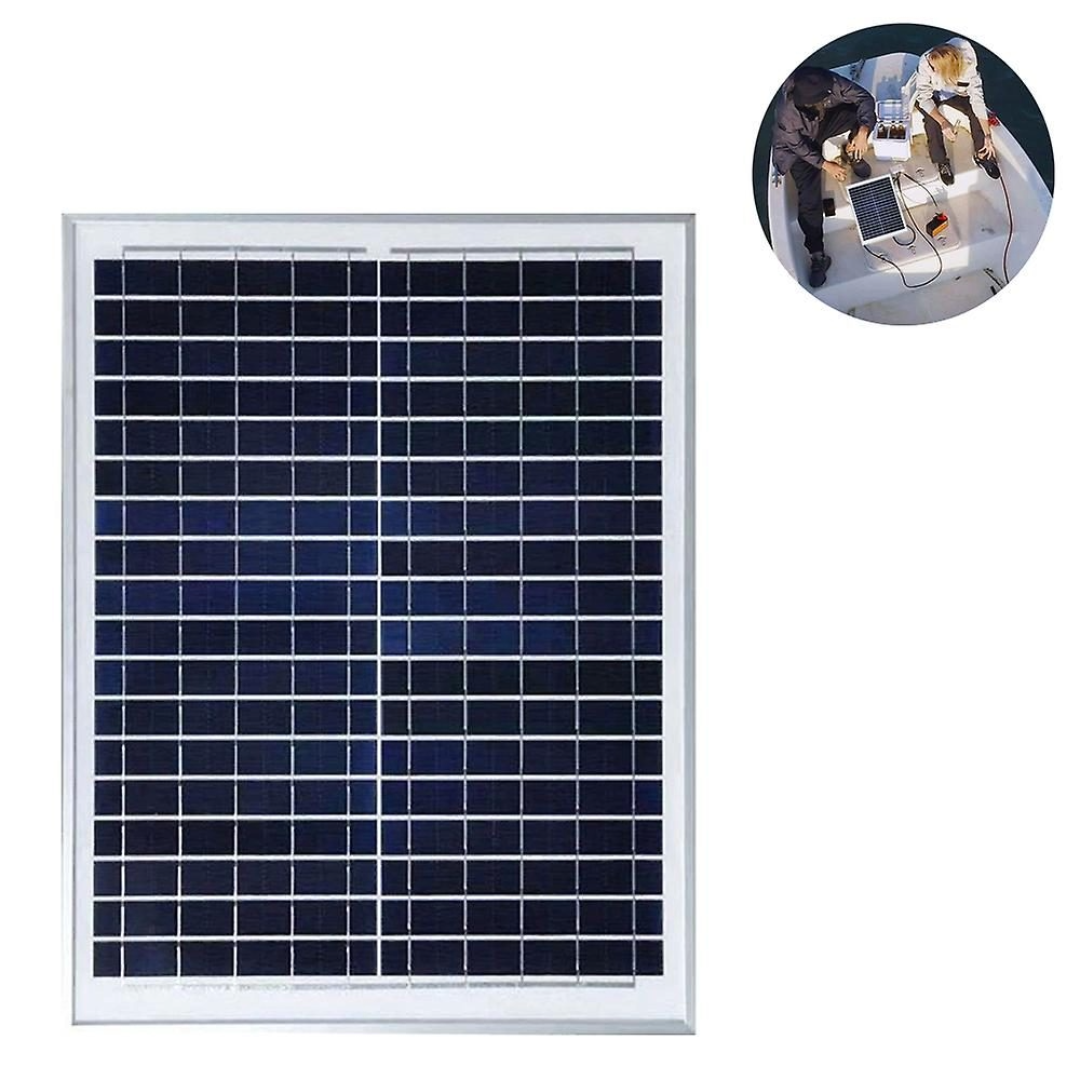

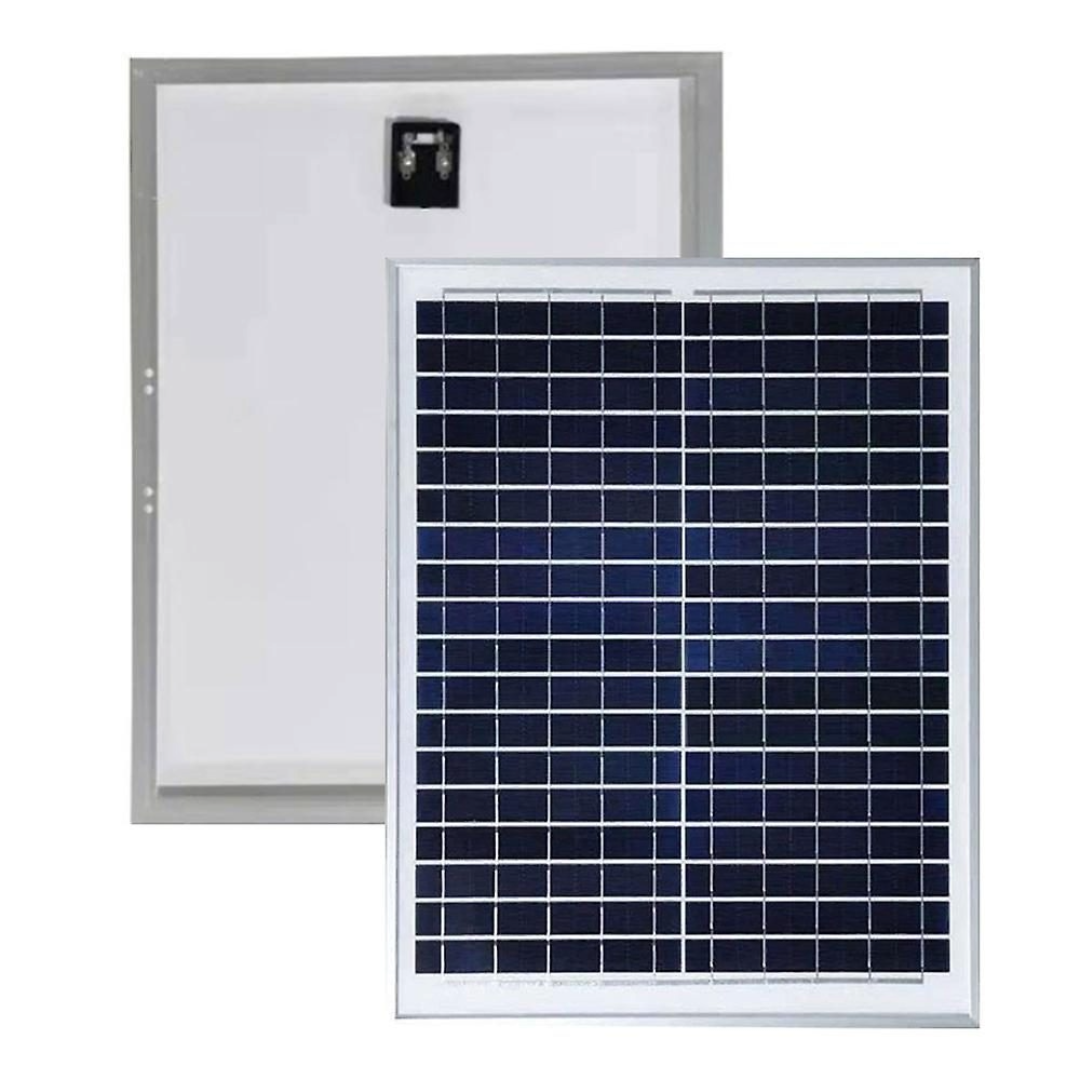

20W Solar Panel

20W Monocrystalline Solar Panel – Durable, Efficient Off-Grid Power Solution

Harness reliable, efficient solar power wherever you go with this 20W Monocrystalline Solar Panel. Designed for long-term durability and consistent performance, it’s the perfect portable energy solution for camping, RVs, marine, outdoor adventures, and small off-grid applications.

Features:

• High-Efficiency Monocrystalline Cells:
  Delivers excellent conversion efficiency, offering up to 24% cell efficiency for maximum power output in a compact footprint.
• Durable, Weather-Resistant Design:
  Built to endure tough outdoor conditions with a positive output tolerance (0–3%), corrosion-resistant aluminium frame, and tempered glass cover. Withstands high wind loads (2400Pa) and snow loads (5400Pa).
• Reliable, Long-Term Performance:
  Multi-layered encapsulation ensures long service life and consistent energy production, even in challenging conditions.
• Easy Installation:
  Pre-drilled mounting holes make setup simple and quick — compatible with Z-brackets, pole mounts, and tilt mounts. Additional pre-drilled holes for grounding are also provided.
• Versatile Use:
  Ideal for RVs, boats, camping setups, remote power systems, and outdoor electronics, delivering efficient power wherever you need it.

Specifications:

• Maximum Power (Pmax): 20W
• Output Tolerance: ±3%
• Maximum System Voltage: 600V DC
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 1.22A
• Voltage at Maximum Power (Vmp): 18V
• Current at Maximum Power (Imp): 1.11A
• Cell Efficiency: 24%
• Operating Temperature (NOCT): 45±2°C
• Temperature Range: -40°C to +80°C
• Number of Cells: 36

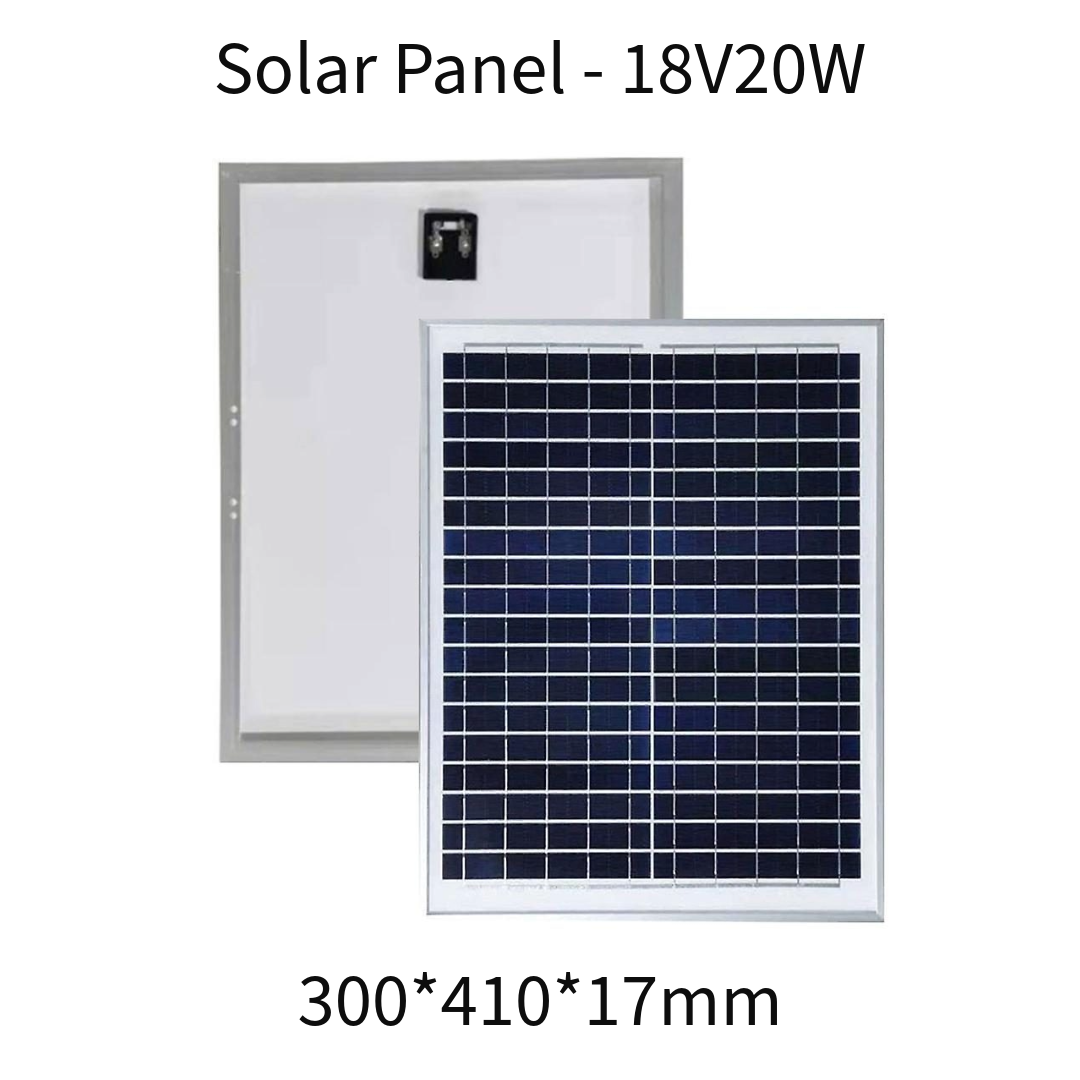

• Panel Size: 410 × 300 × 17 mm
• Standard Test Conditions: 1000W/m², 25°C, AM=1.5

Package Includes:

• 1 × 20W Monocrystalline Solar Panel

Also Available:
Choose from a wide range of Monocrystalline Solar Panels to suit your needs: 10W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 200W, 260W, and 300W options available.
