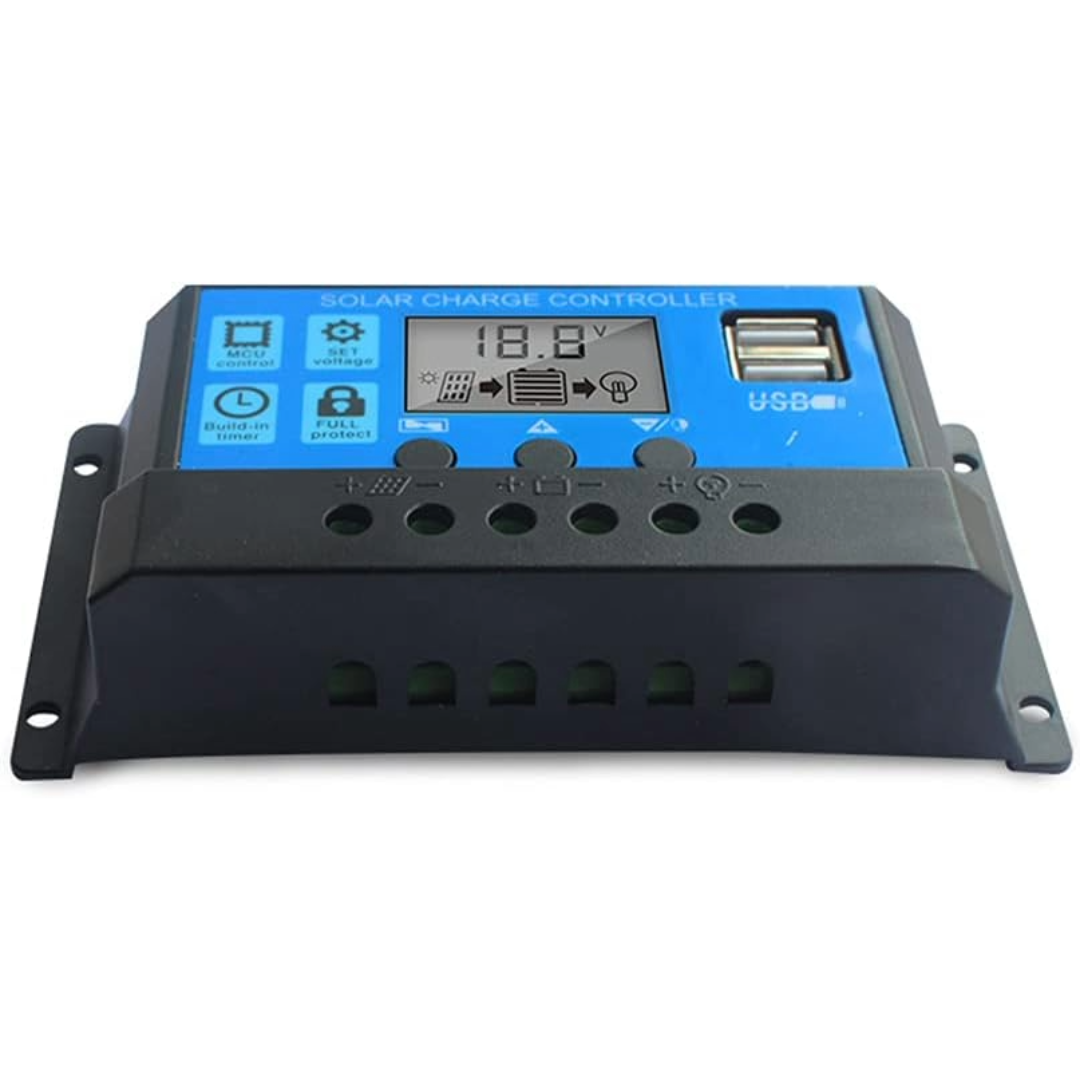

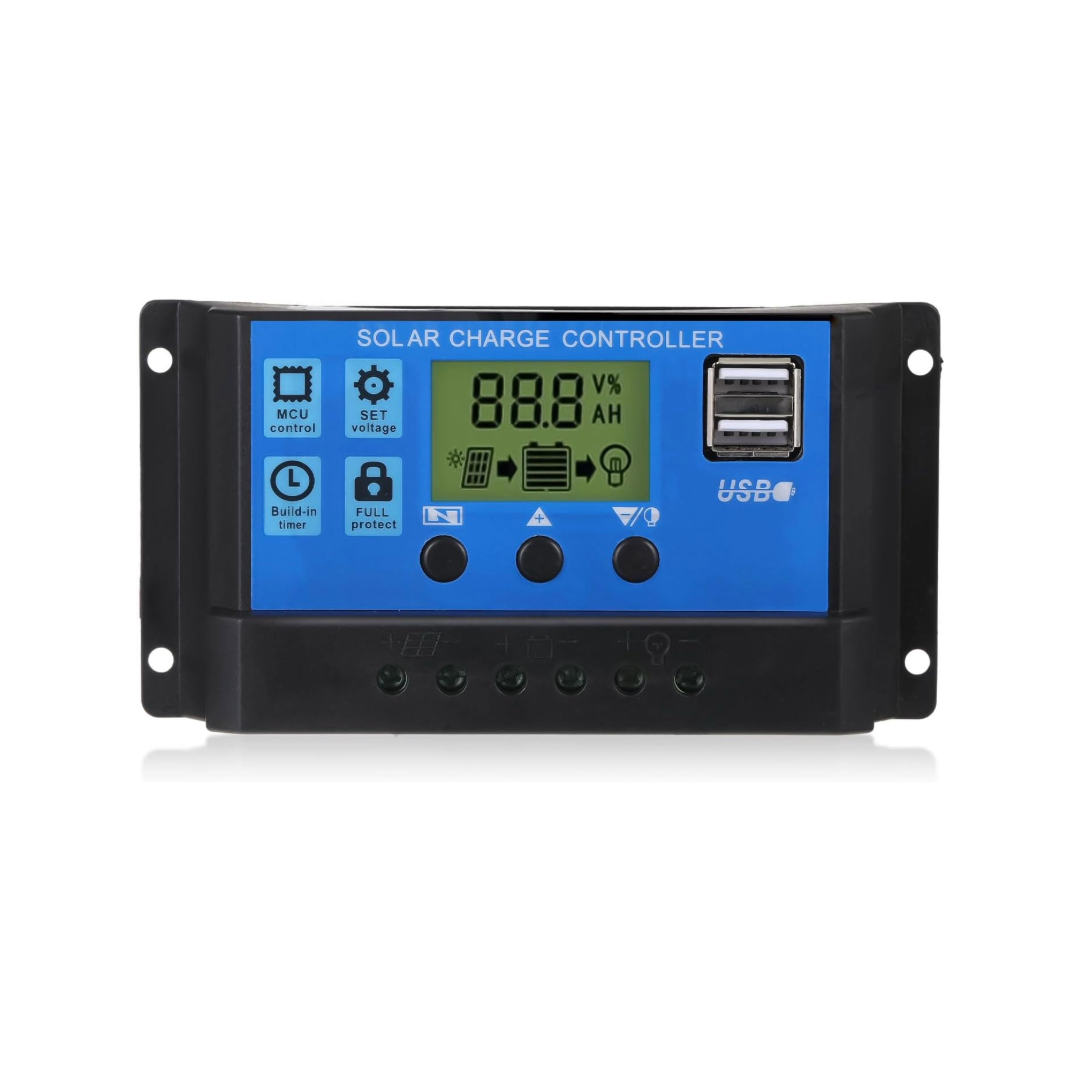

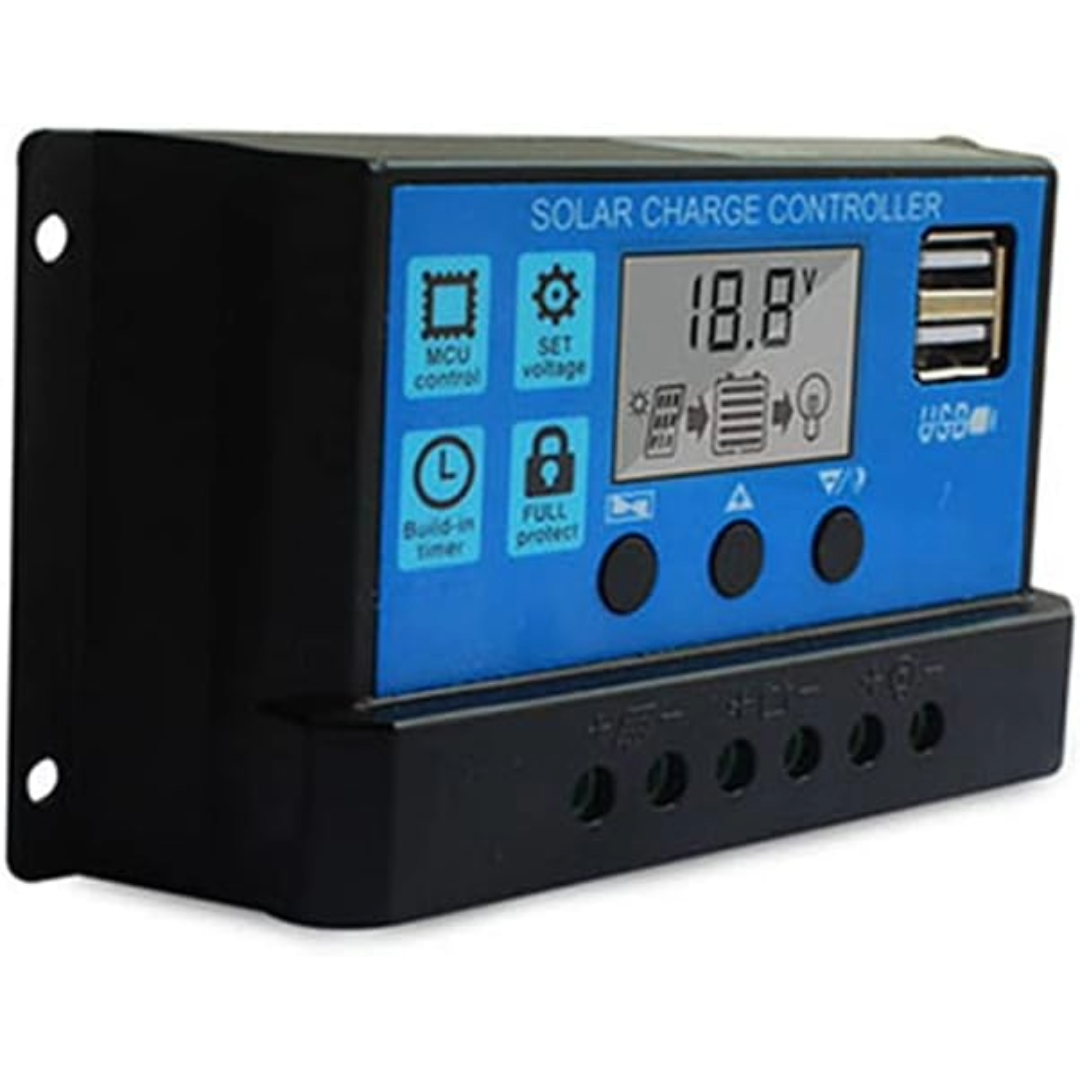

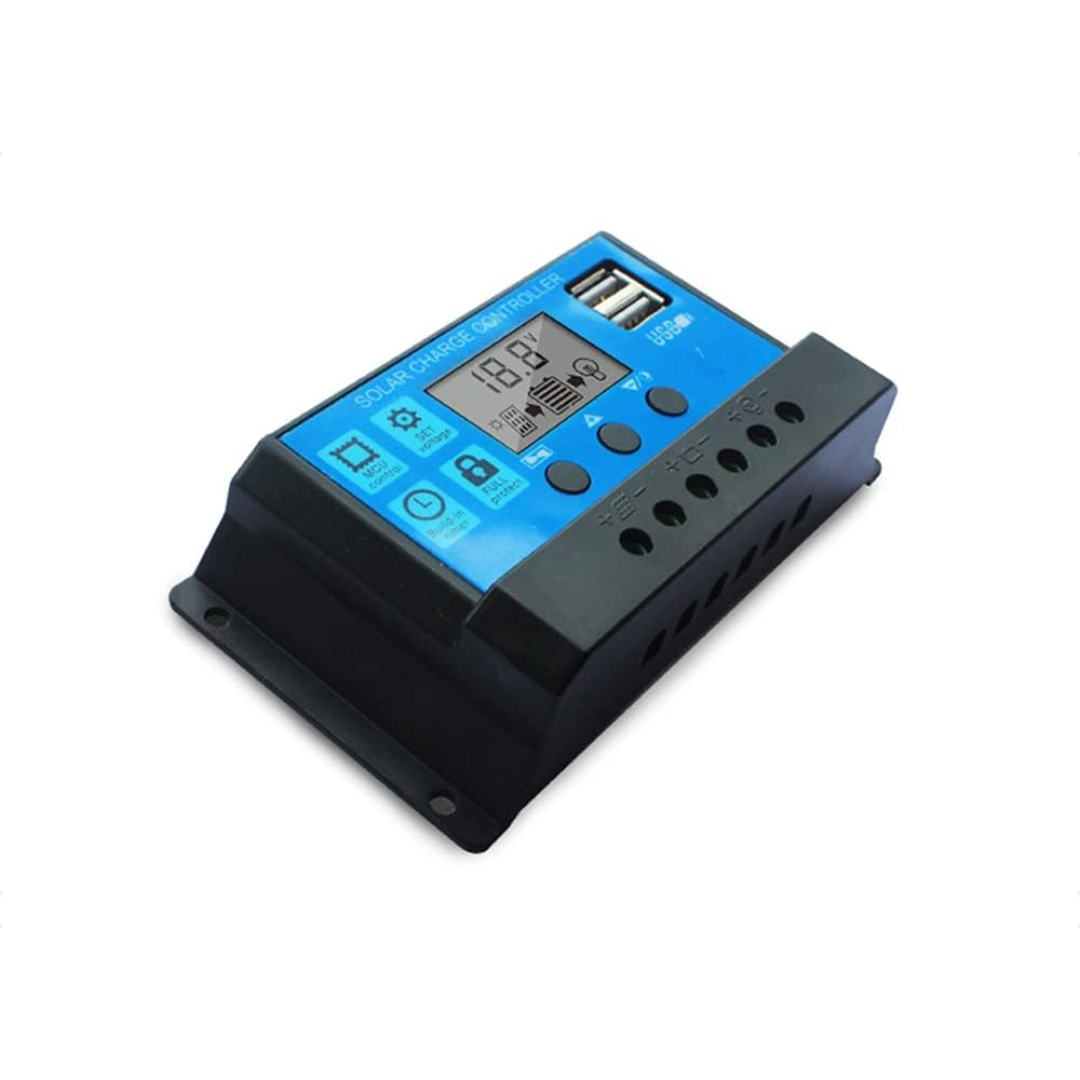

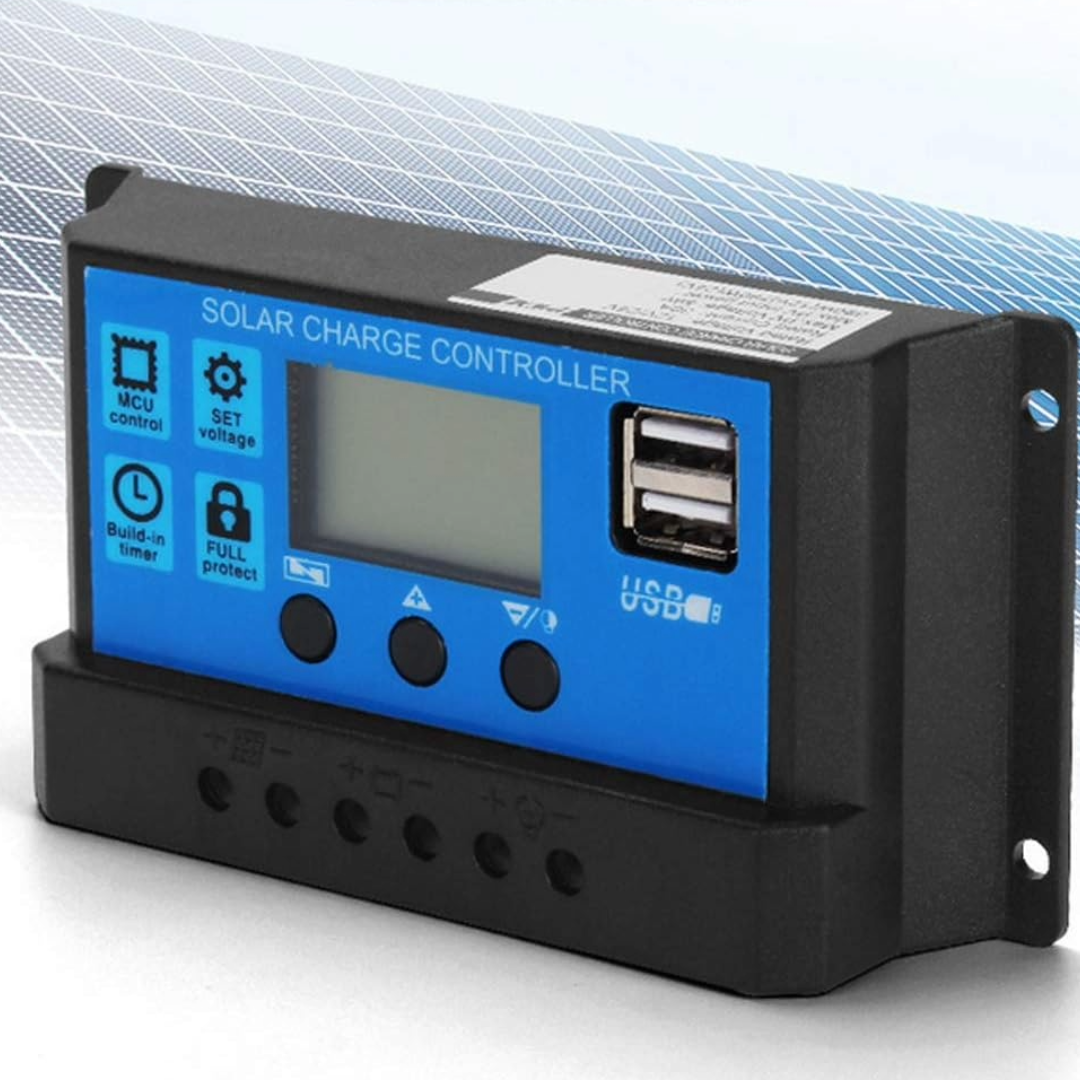

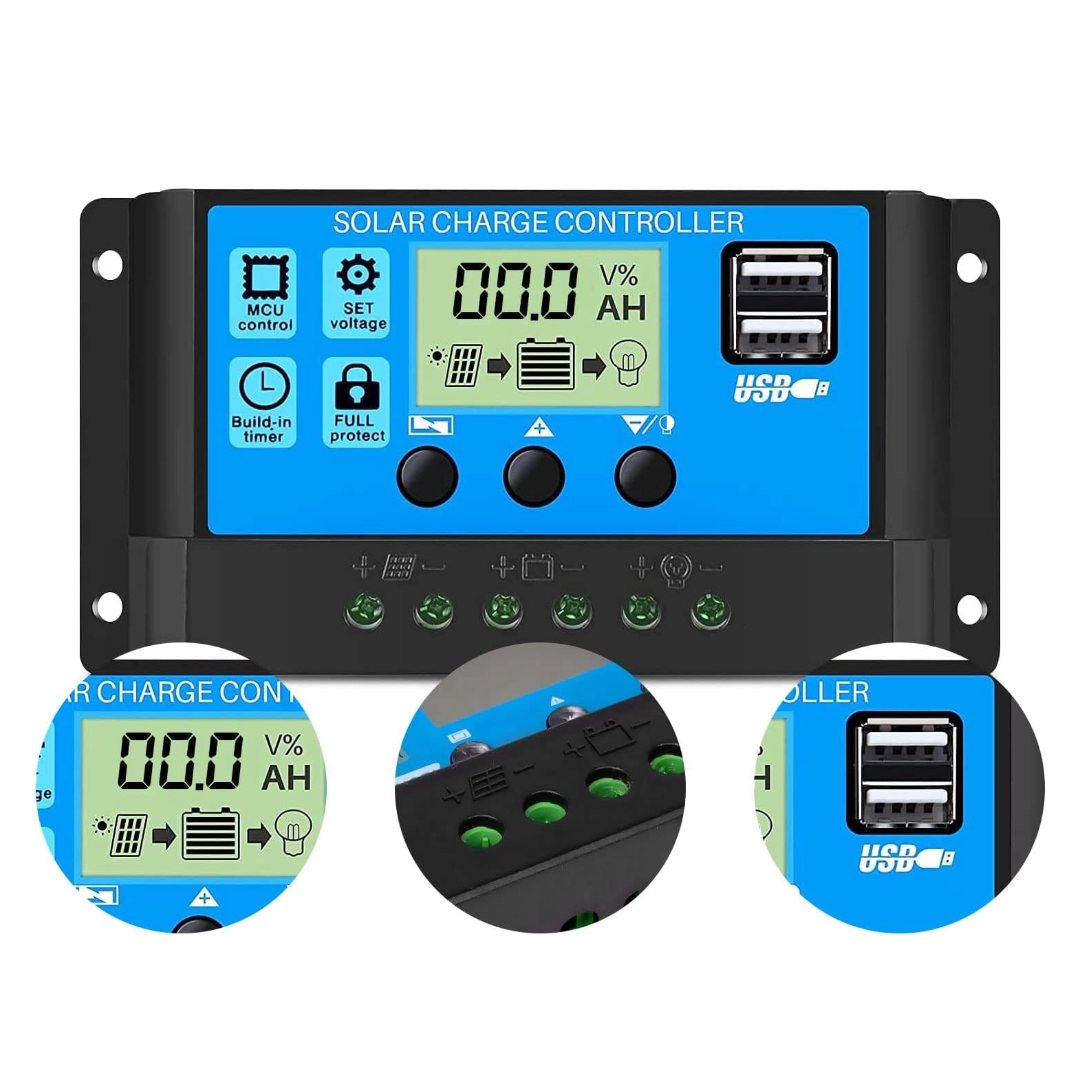

30A Solar Panel Regulator Charge Controller & Timer

Wide compatibility: the solar charge controller with 30A rated discharge current is automatically compatible with 12V or 24V systems and suitable for lead-acid batteries.

USB output: 5V / 2A max. Solar charge controller is only for lead acid batteries

Safety protection: charge controller solar provides overcurrent protection, short circuit protection, reverse polarity protection, low voltage and overcharge protection, reliable protection for your devices. With full 3-stage PWM charging management

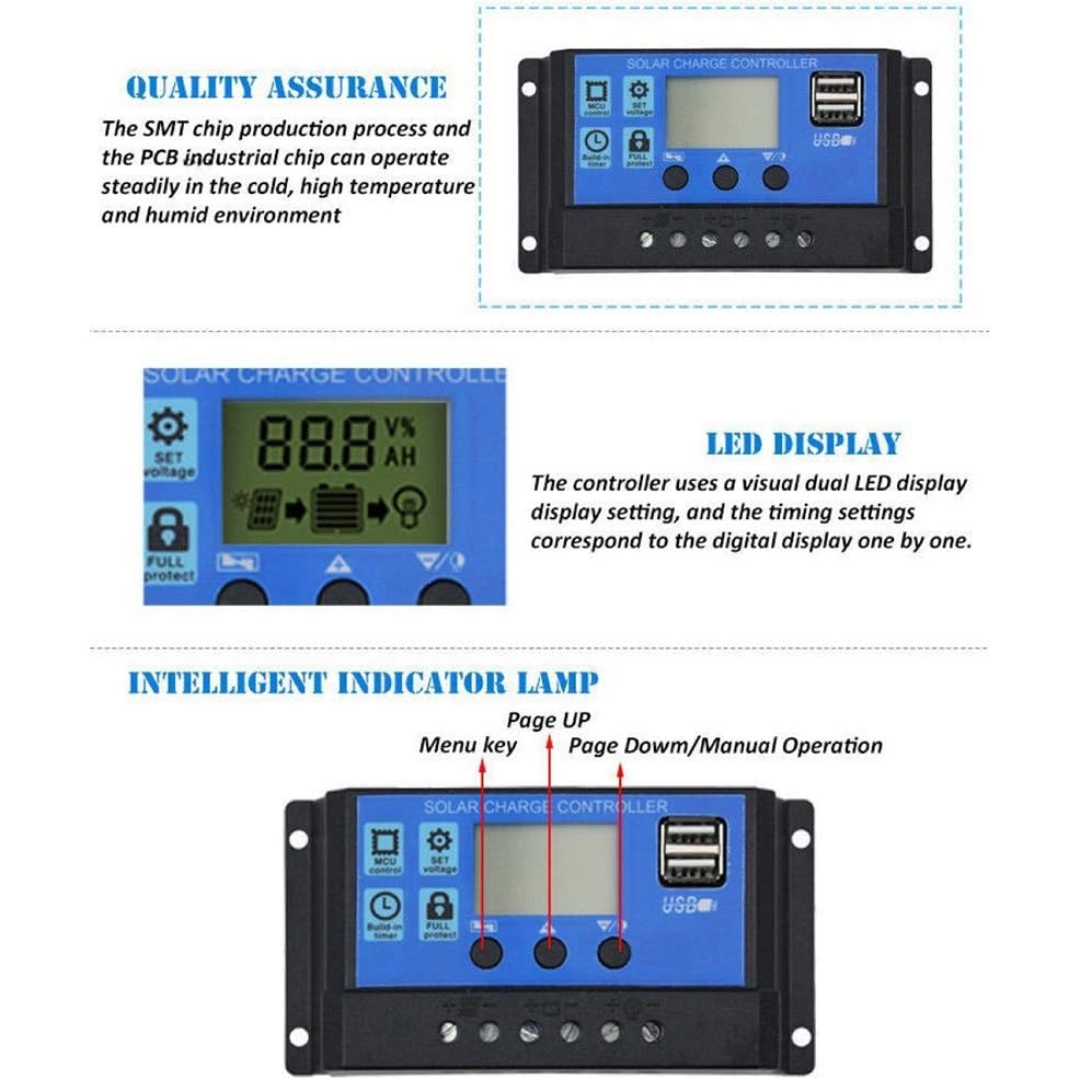

Easy to use: with an LCD display that clearly shows status and data, the charge controller should first connect the battery, then the solar panel and finally the load! You can change the settings by the simple one button operation

Functional LCD display: PWM-12V/24V solar panel regulator Intuitive LCD display, which can clearly display the status and data, is able to switch modes and parameter configuration, suitable for PWM solar charge controller home, industrial, commercial, etc.

Features:

1. Build-in industrial microcontroller
2. LCD screen
3. PWM charging mode
4. Dual USB port
5. Built-in short circuit protection
6. Open circuit
7. Reverse protection
8. Over load protection
9. Dual mosfet reverse current protection

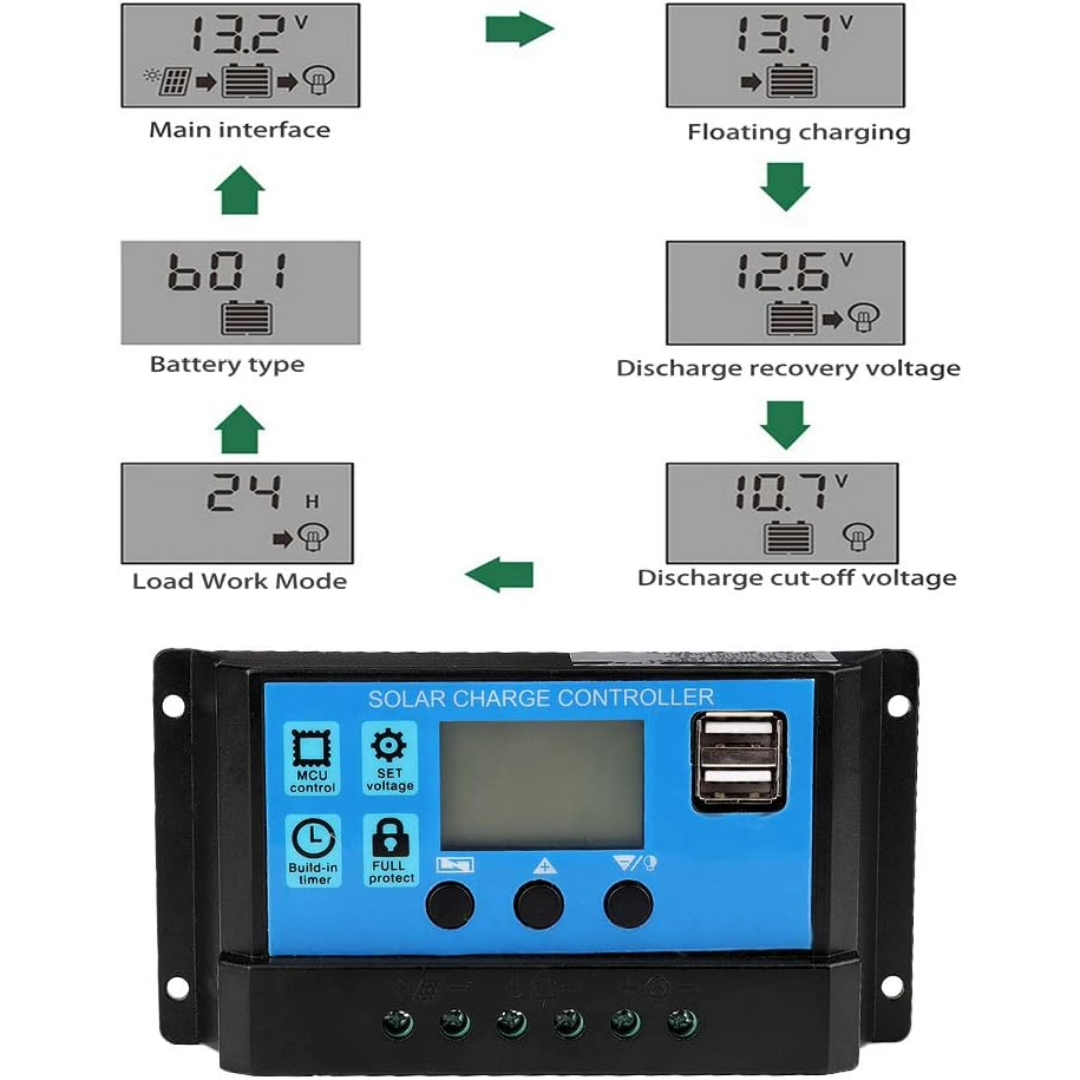

Controller parameters:

1. Floating charge voltage (HVD 13.3 V -15 V)
2. Recovery after voltage (LVD 11V-13.5V)
3. Under voltage protection (RVD 9V-12.3V)
4. Lead mode: 24 hours
5. Battery option (GEL, LEAD-ACID, FLOODED)
6. Type: Basic Version
7. Size: 133 x 70 x 34mm

Specification: Model: RBL-30A charge controller Battery voltage: 12 V/24 V car Charge current: 30 A Discharge current: 30 A Equality: B01 sealed 14.4 V B02 Gel 14.2V B03 Flood 14.6 Swimming fee: 13.7 V, which is adjustable to fall Charging stop: 10.7, the default bag saving Relocate relief: 12.6 V USB output: 5V/3A Operating temperature: -35 ~ + 60 °C

Package includes:

1 x solar charge controller 30Amp

1 x User Manual
