50A Solar Charge Controller USB 12V 24V
Taxes included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description

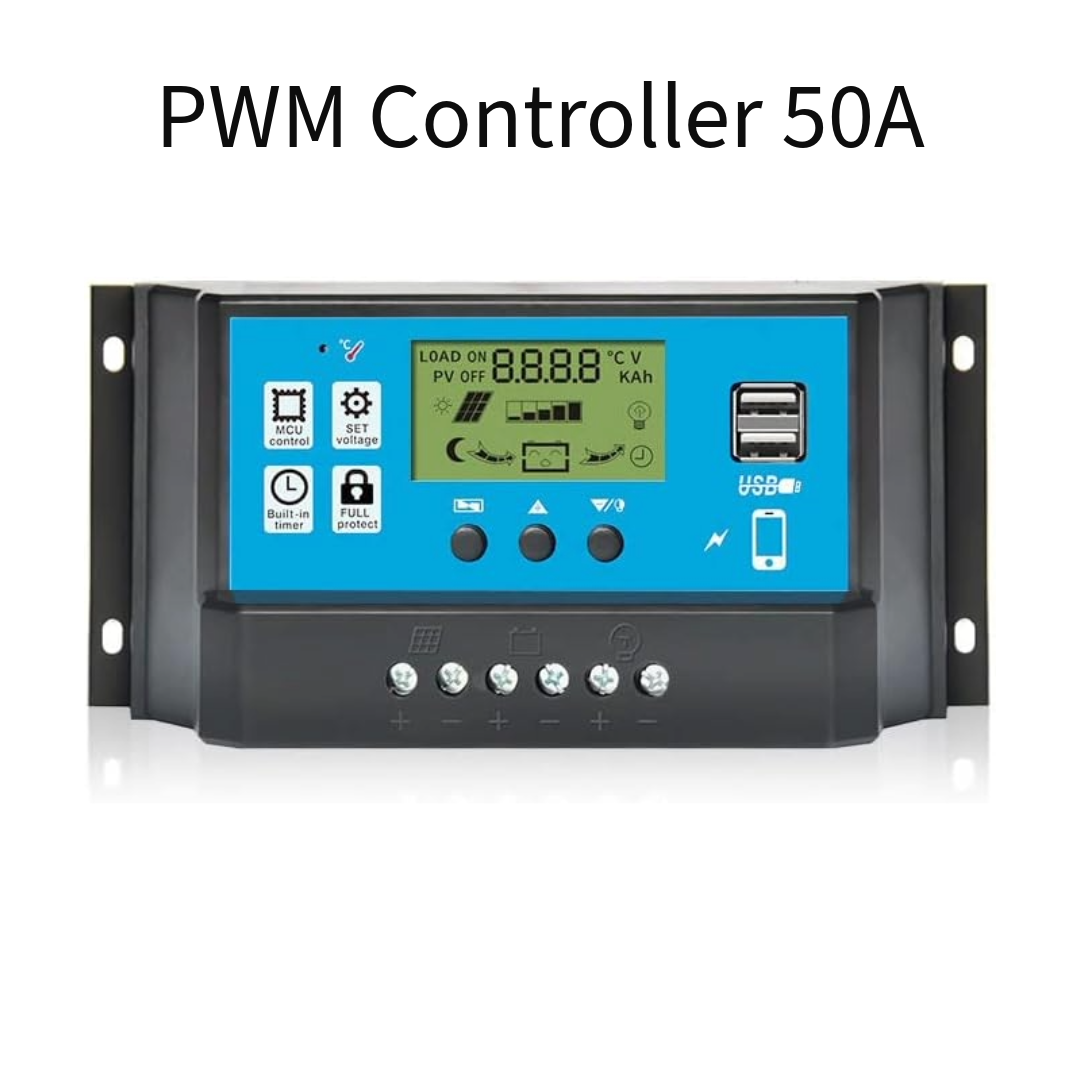

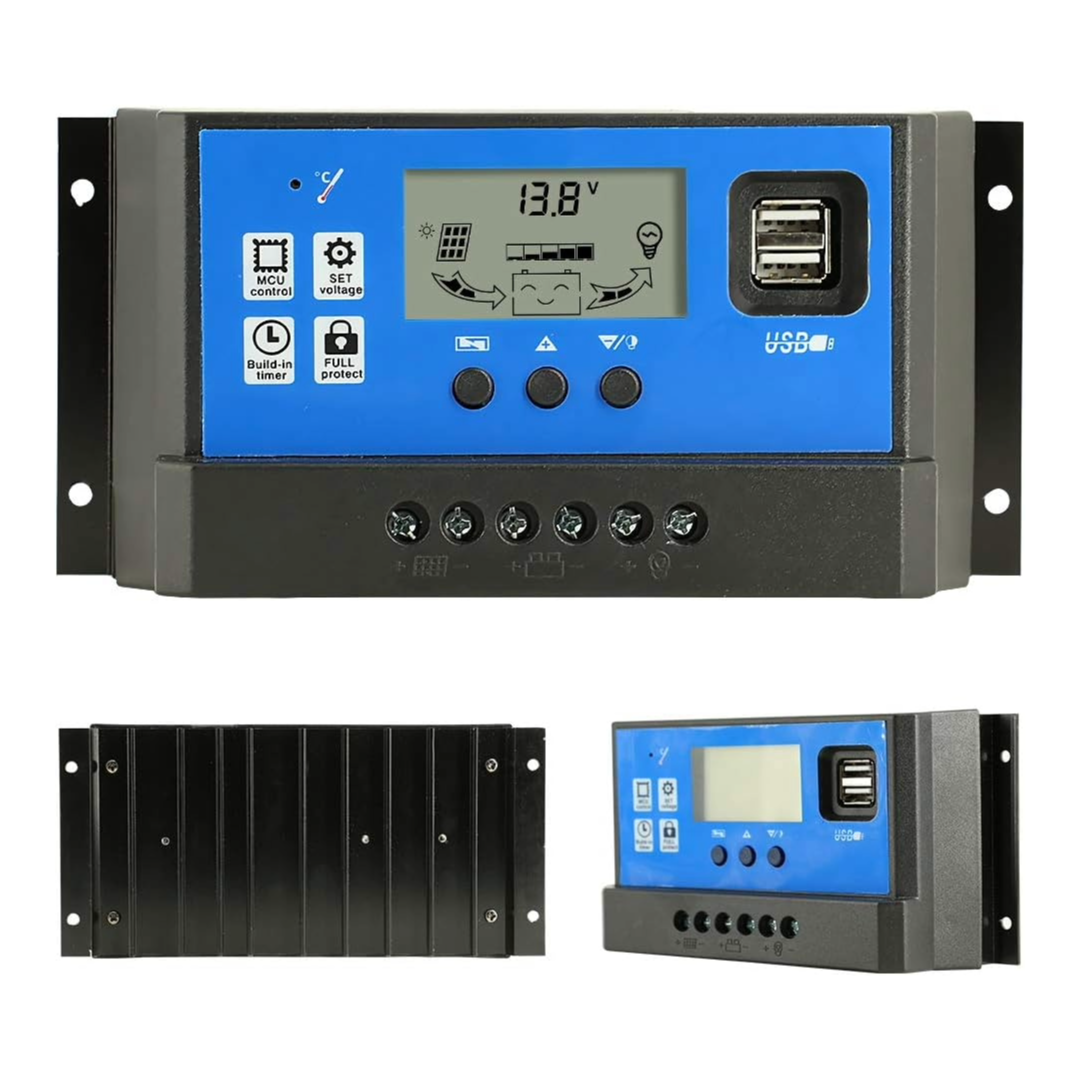

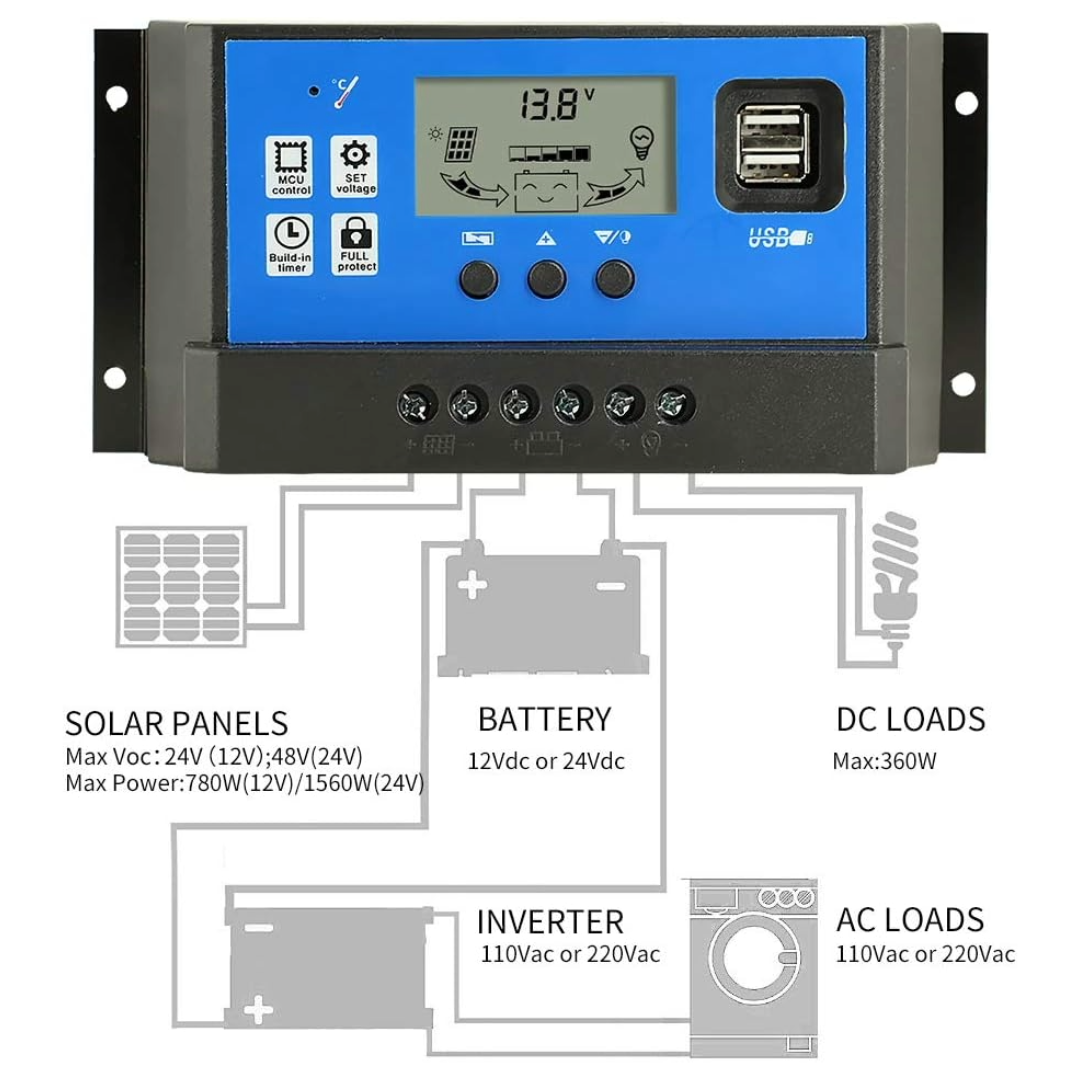

50A PWM solar charge controller with 12V/24V auto work. Max input voltage 48V, Max input power 1560W.

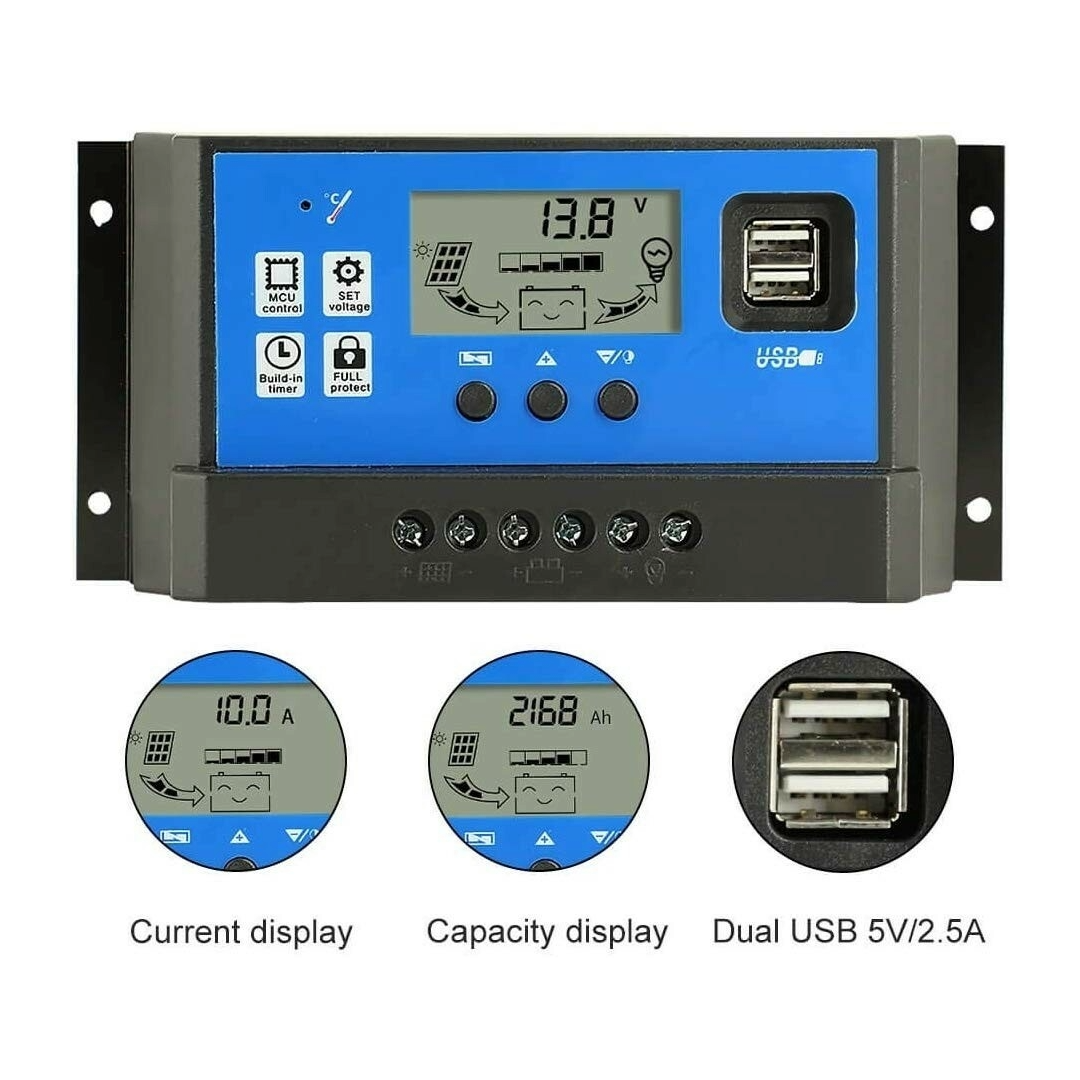

Dual USB output 5V/2.5A, large screen LCD display with power-off memory.
Built-in full protection and 3-stage charging to extend battery life.
OPEN, AGM, GEL Lead acid battery holder. Do not use other batteries (including lithium batteries, nickel-metal hydride batteries, etc.).

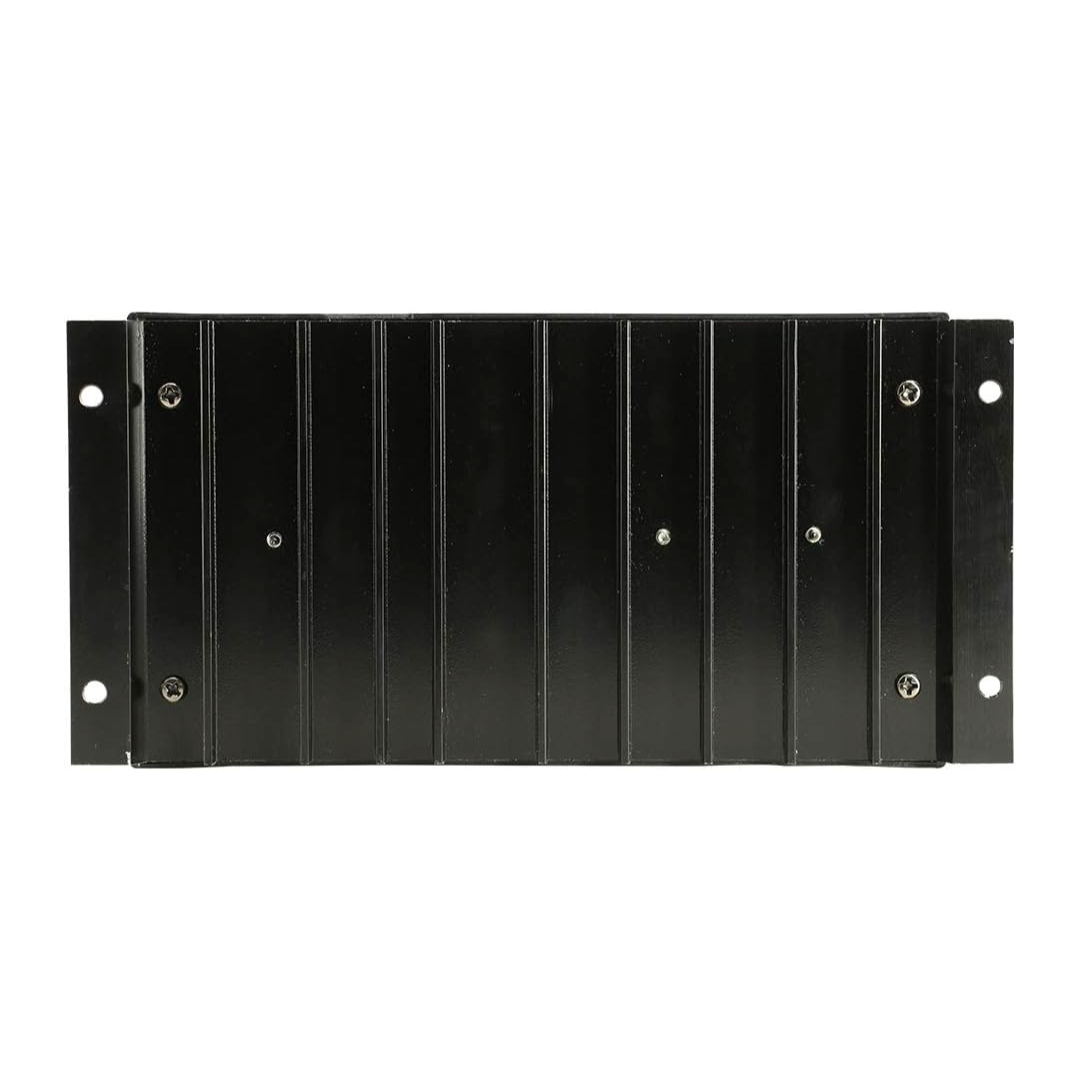

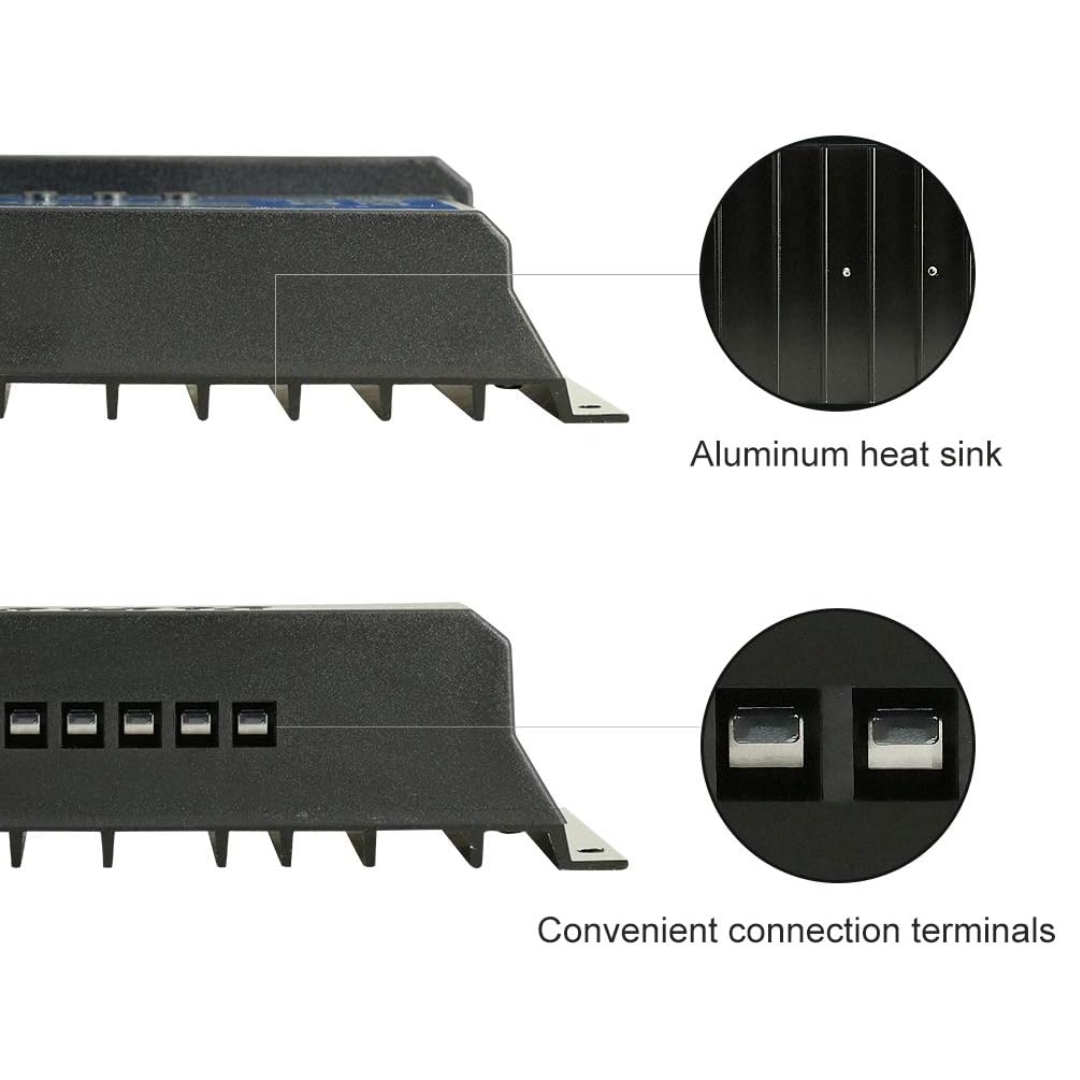

Three-load working mode to meet your different needs, good heat dissipation design. Easy to set up and connect.
Features:
- System Voltage: 12V/24V Auto
- Charge Current: 50A
- Max Input Voltage: 24V (12V system); 48V (24V system)
- Max Input Power: 650W (12V system); 1300W (24V system)
- Dual USB Output: 5V/2.5A
- Compatible Batteries: OPEN, AGM, GEL Lead Acid Batteries
- Full Protection: Short-Circuit, Open-Circuit, Reverse, Over-Load
- Large-Screen LCD Display with Power-Off Memory
- Temperature Display
- Three Load Working Modes
- Easy Setting and Connection
Specifications:
- Self-Consume: <10mA
- Temperature: -35°C to +60°C

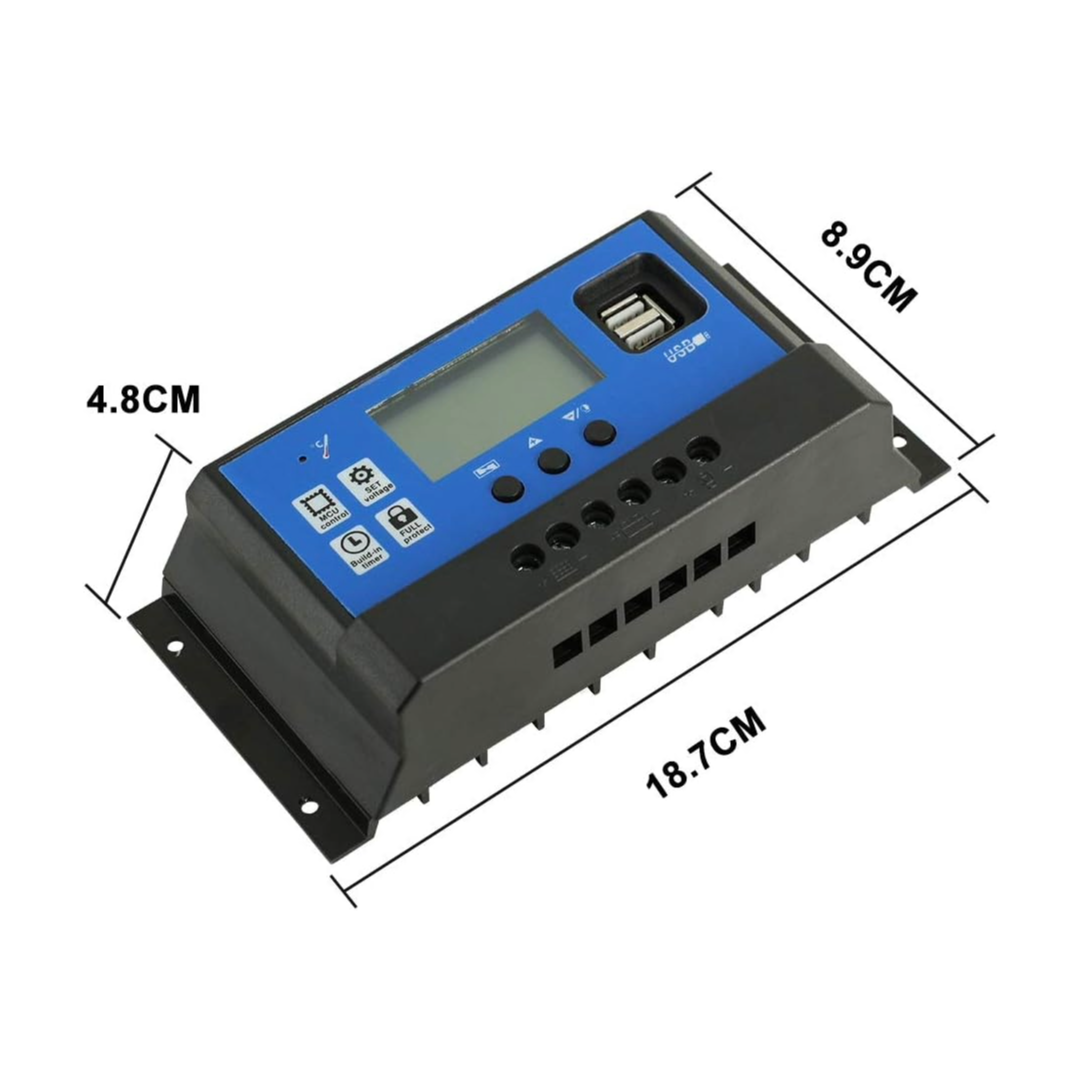

- Size: 187mm*48mm*89mm
- Weight: 390g
- Float Charge: 13.7V (default, adjustable)
- Discharge Reconnect Voltage: 12.6V (default, adjustable)
- Discharge Stop Voltage: 10.7V (default, adjustable)
- Turn ON/OFF Light Voltage: Solar Panel 8V
Package Includes:
1 x 50A Solar Charge Controller
1 x User Manual
