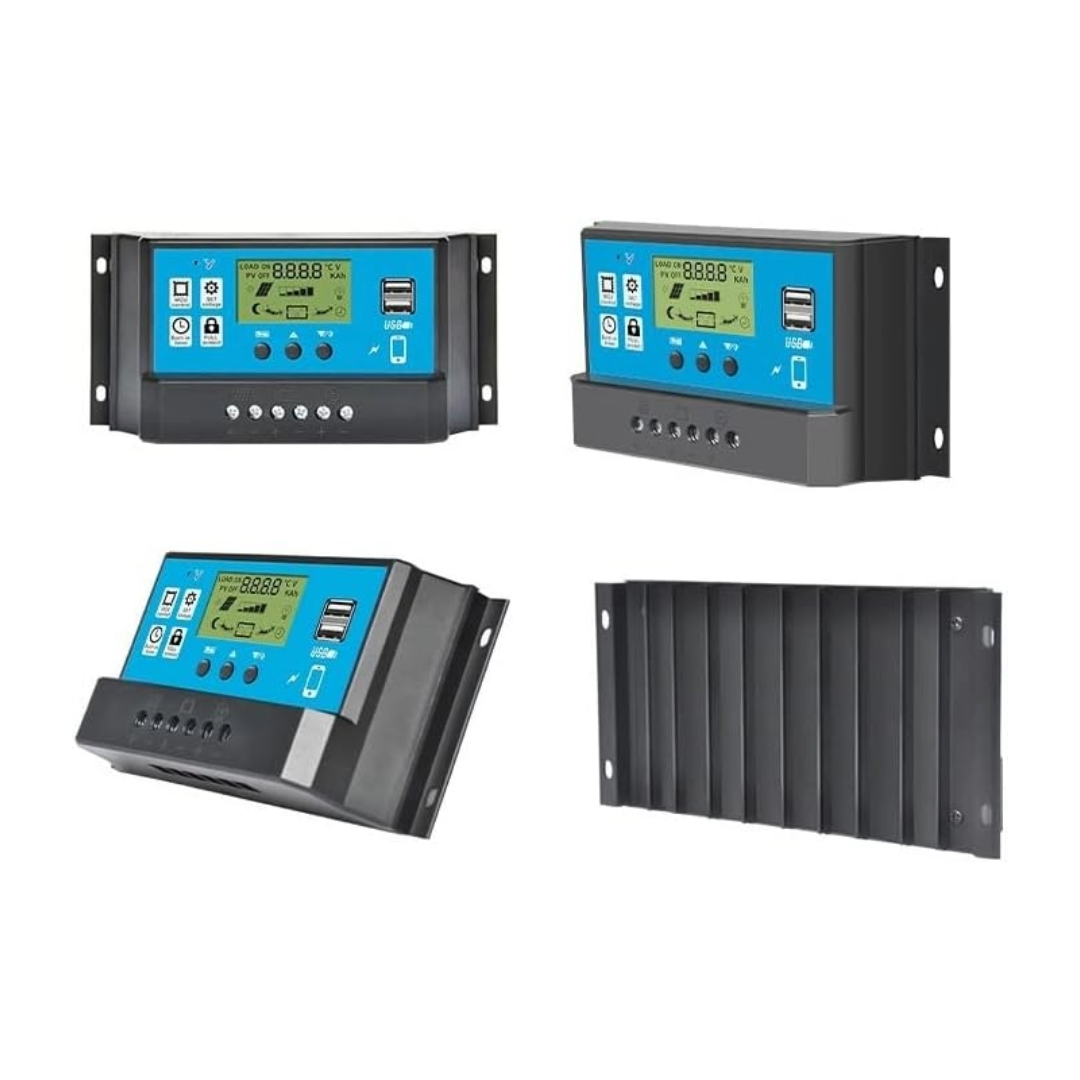

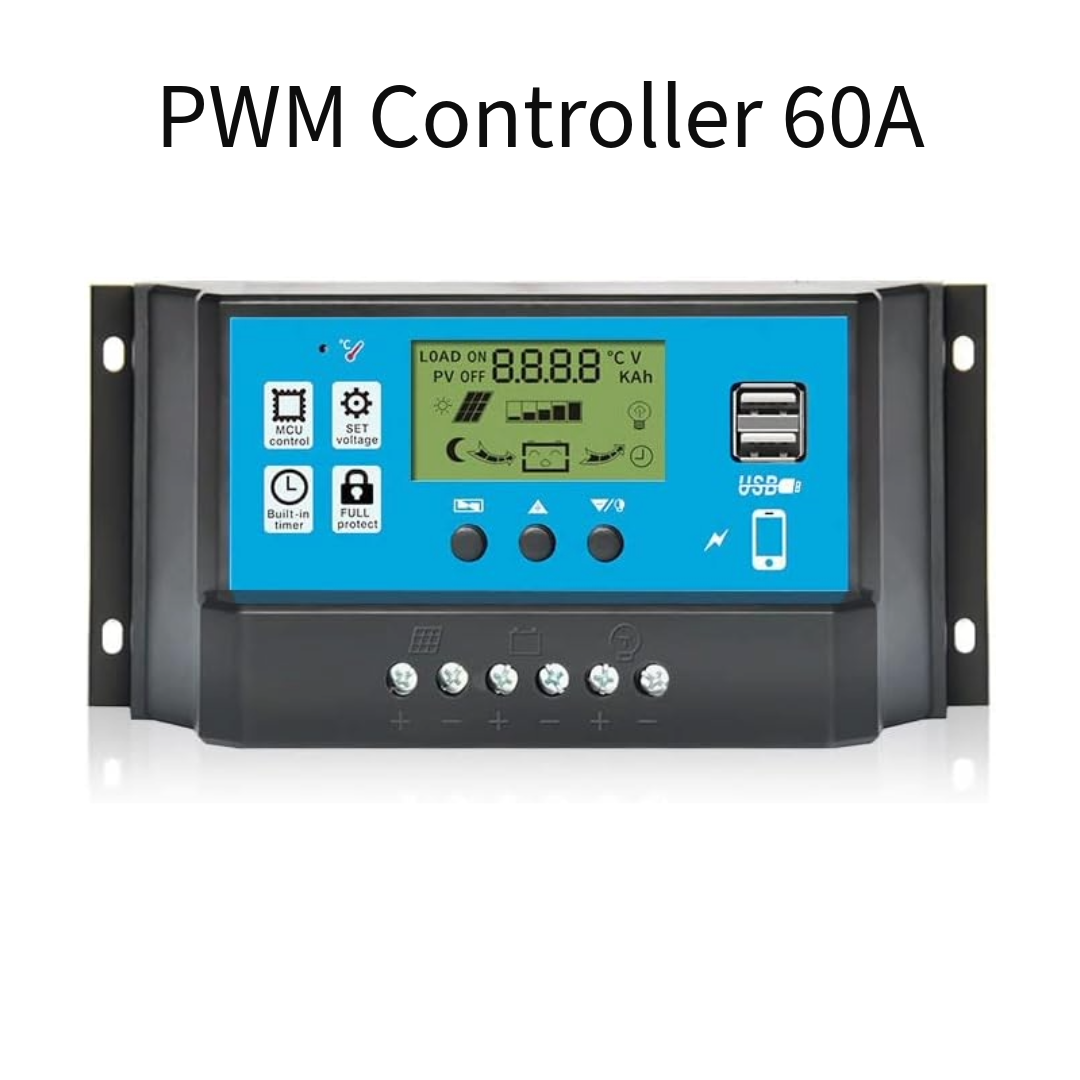

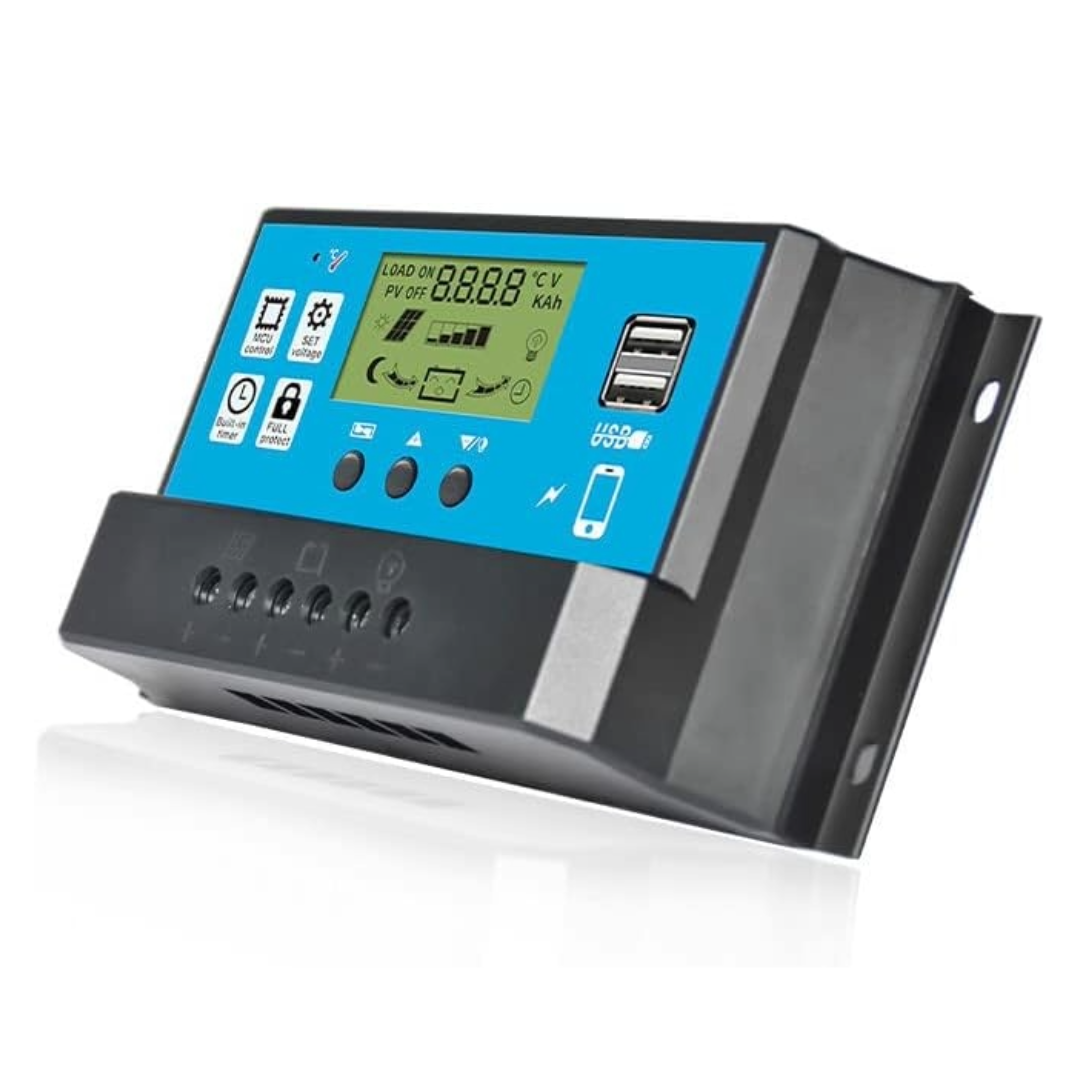

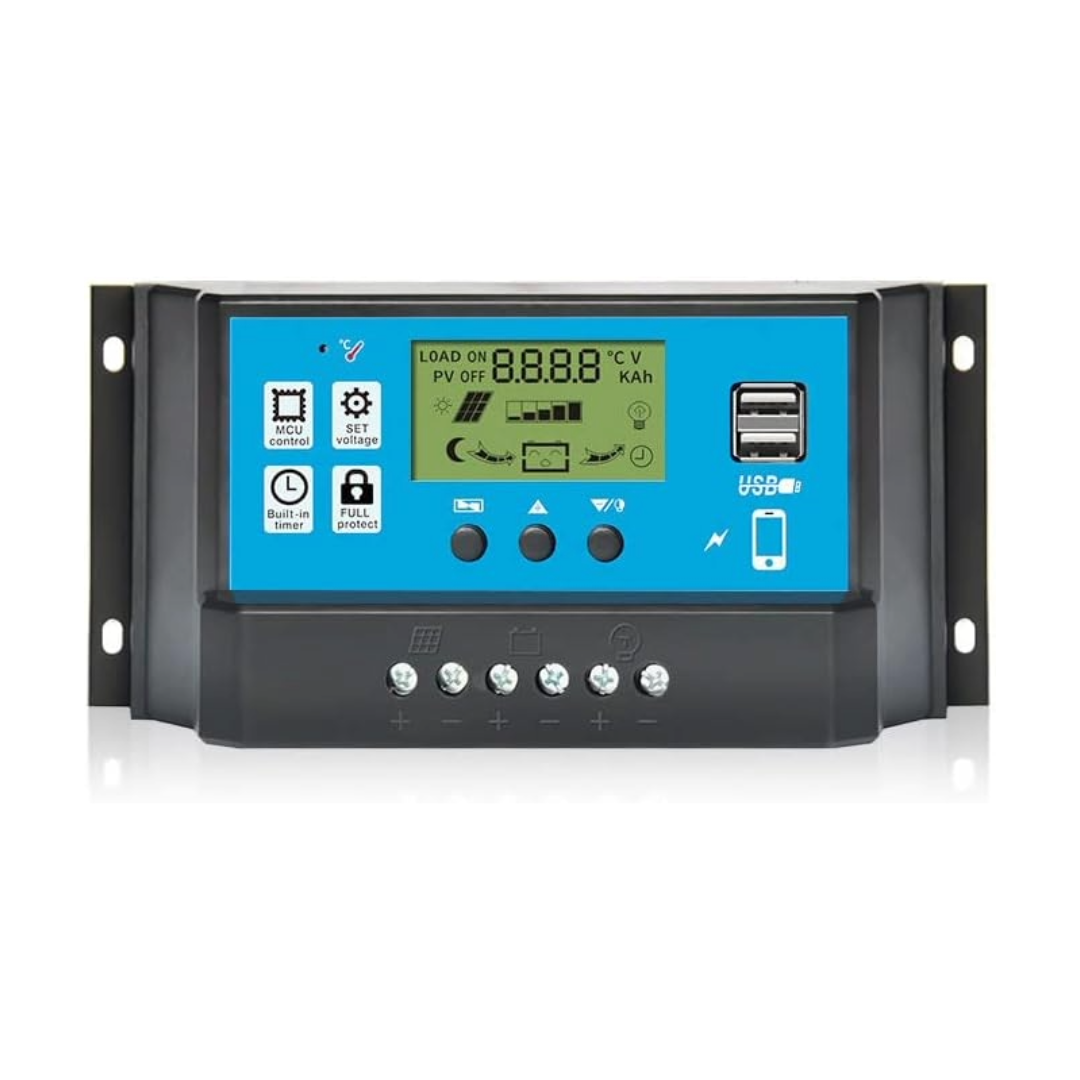

60A Solar Charge Controller USB 12V 24V

Introducing the 60A Solar Charge Controller, a versatile and intelligent device designed to regulate and optimize your solar charging system. With advanced features and robust protection mechanisms, this charge controller ensures efficient and safe charging for your batteries while extending their lifespan.

Features:
1. When using the solar controller to charge the battery, the controller will automatically check the voltage.
2. When transferring positive and negative charges to the controller, do not reverse.

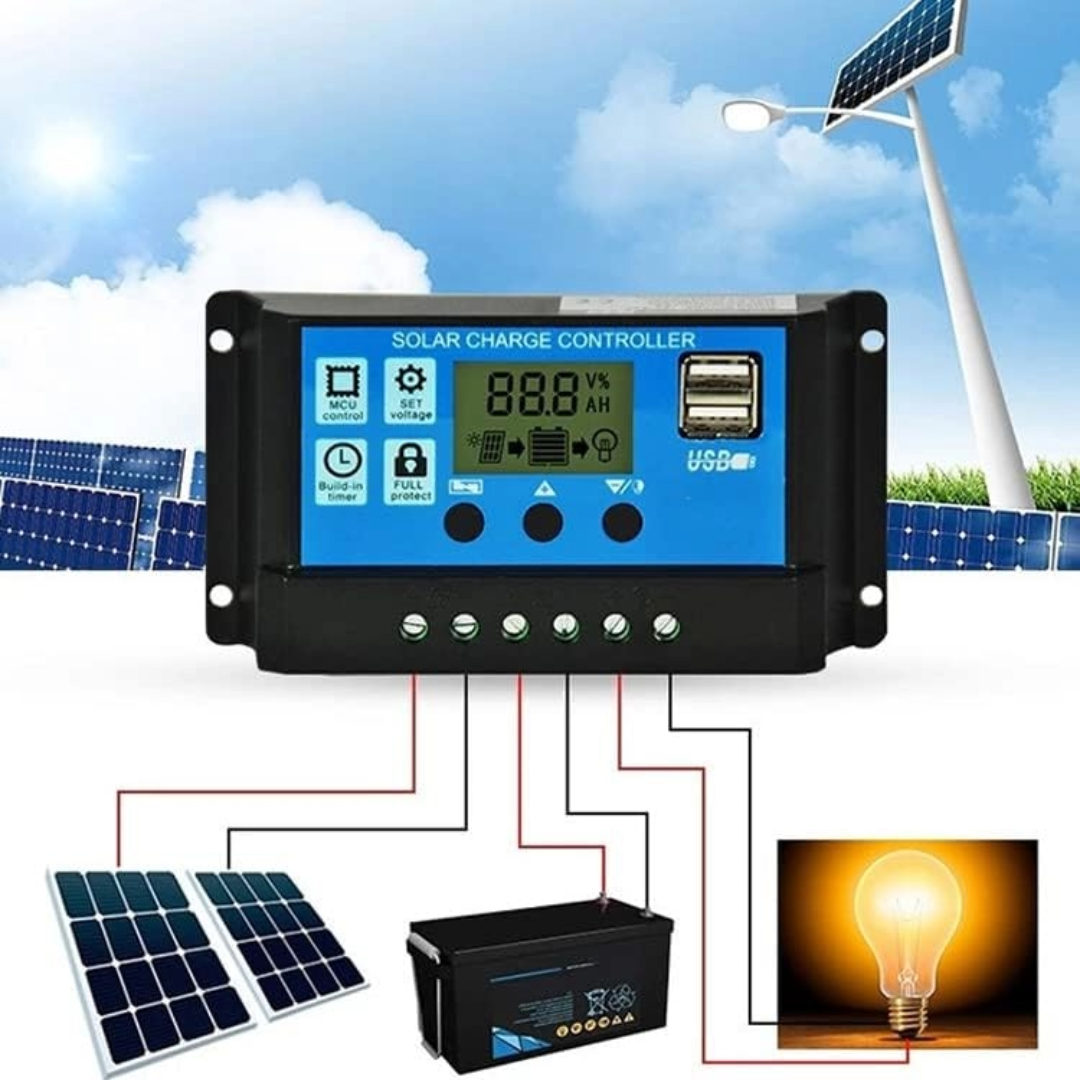

3. Connect the solar panel to the solar controller.

Note: Strictly comply with solar panels and solar controllers. Otherwise, the solar controller may be damaged.

Specification:
Condition: Brand New
Item Type: Controller
Material: Plastic
Model: W88-F
System Voltage: 12V/24V Automatic Adaptation
Rated Charging Current: 60A
Rated Discharge Current: 30A
Maiximum Photovoltaic Voltage: when the battery is 12V, the highest is 23V; Maximum 46V at 24V battery
Direct Voltage: 14.4V
Floating Charging Voltage: 13.7V (default, adjustable)
Discharge Cut-off Voltage: 10.7V (default, adjustable)
Discharge Recovery Voltage: 12.6V
Charging Recovery Voltage: 13V
Threshold of Light-controlled Light Opening: PV Panel 8V
(light-controlled light opening has delay)
Threshold of Light-controlled Light Off: PV Panel 8V (light-controlled light opening has delay)

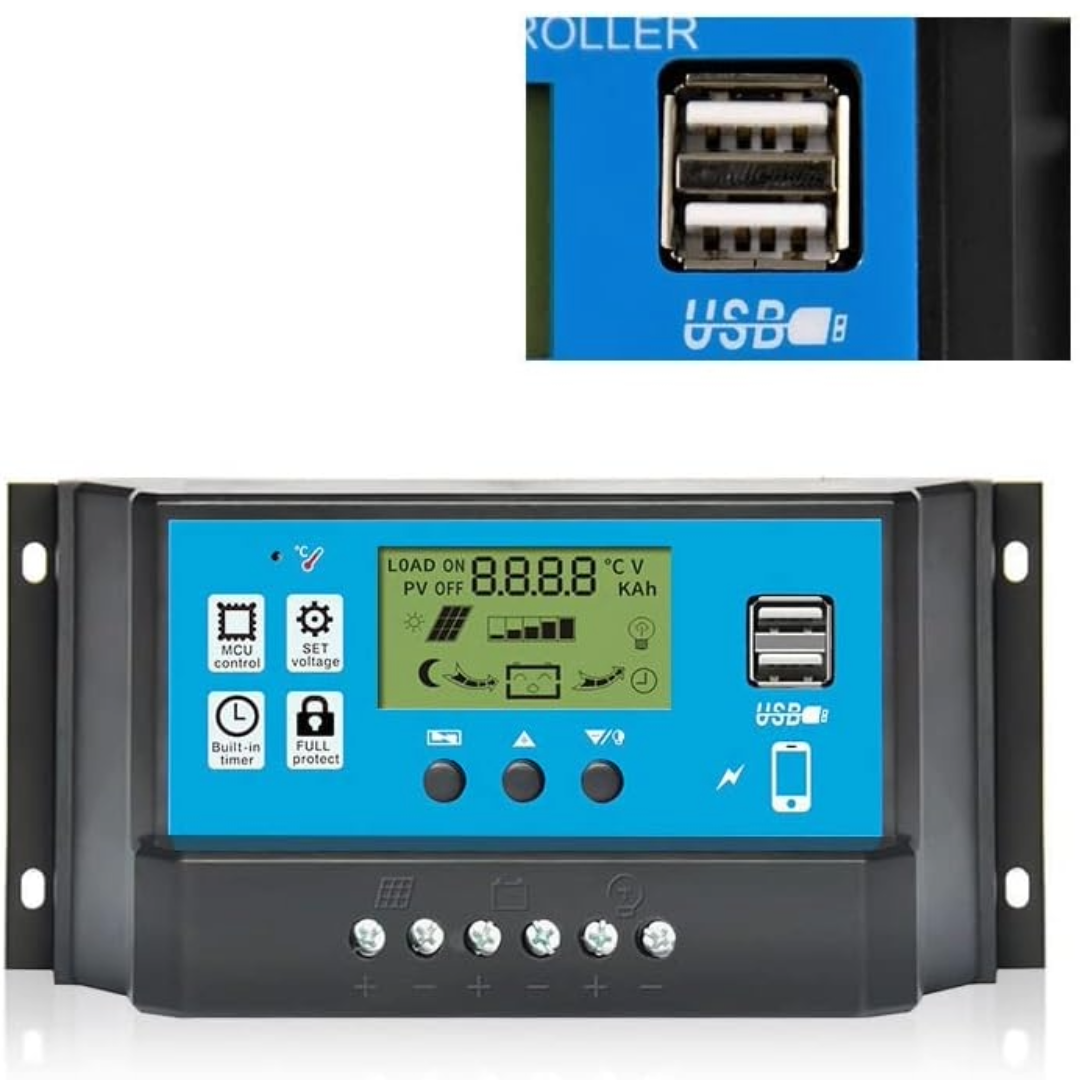

USB Output: 2-way USB output 5V/ 2.5A (maximum)
Standby Current: Charging Mode: PWM pulse modulation
Operating Temperature: -35- +60℃

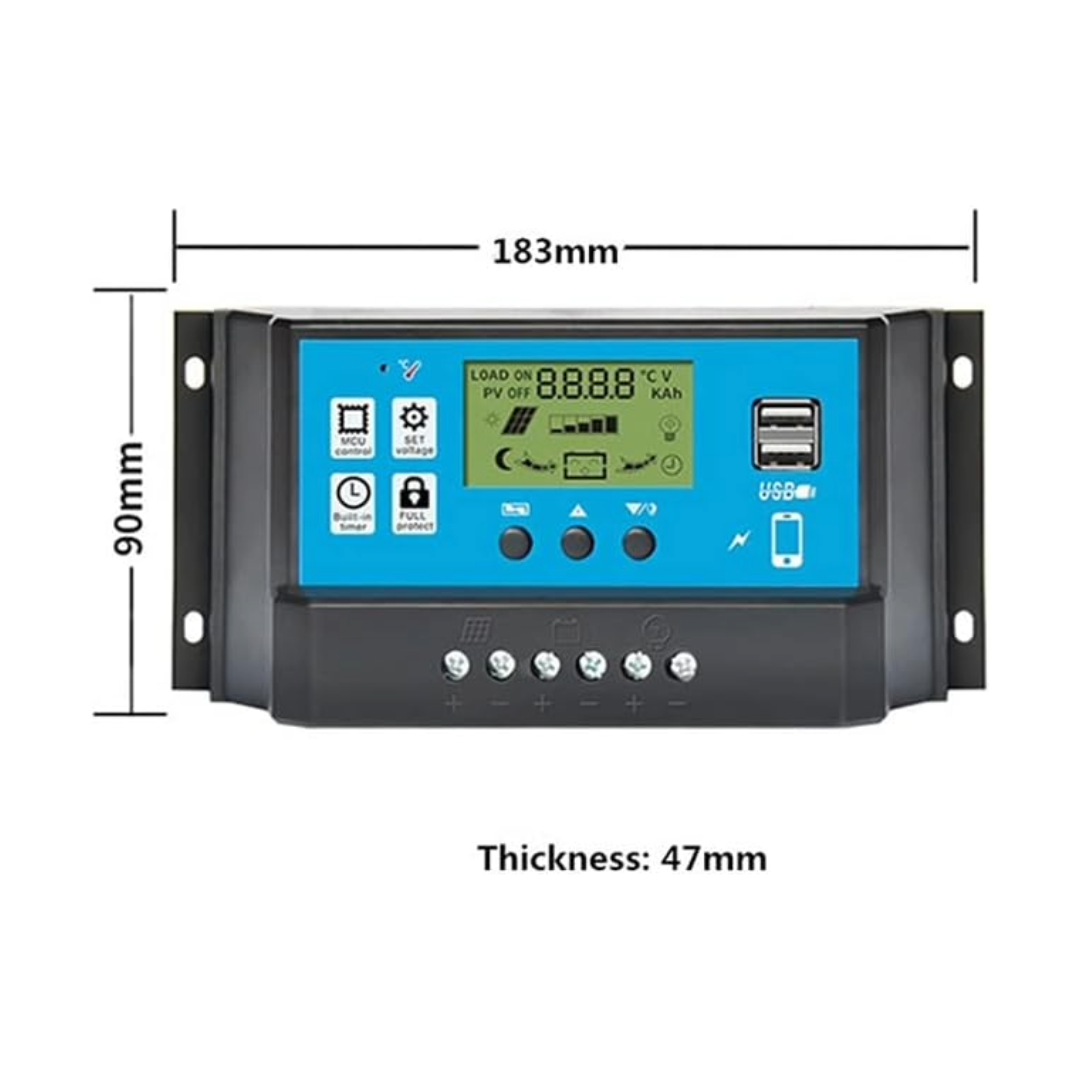

Size: 18.7 x 8.9 x 4.8cm
Weight: 340g

Packing Included:
1 x 60A Solar Controller
1 x Manual
