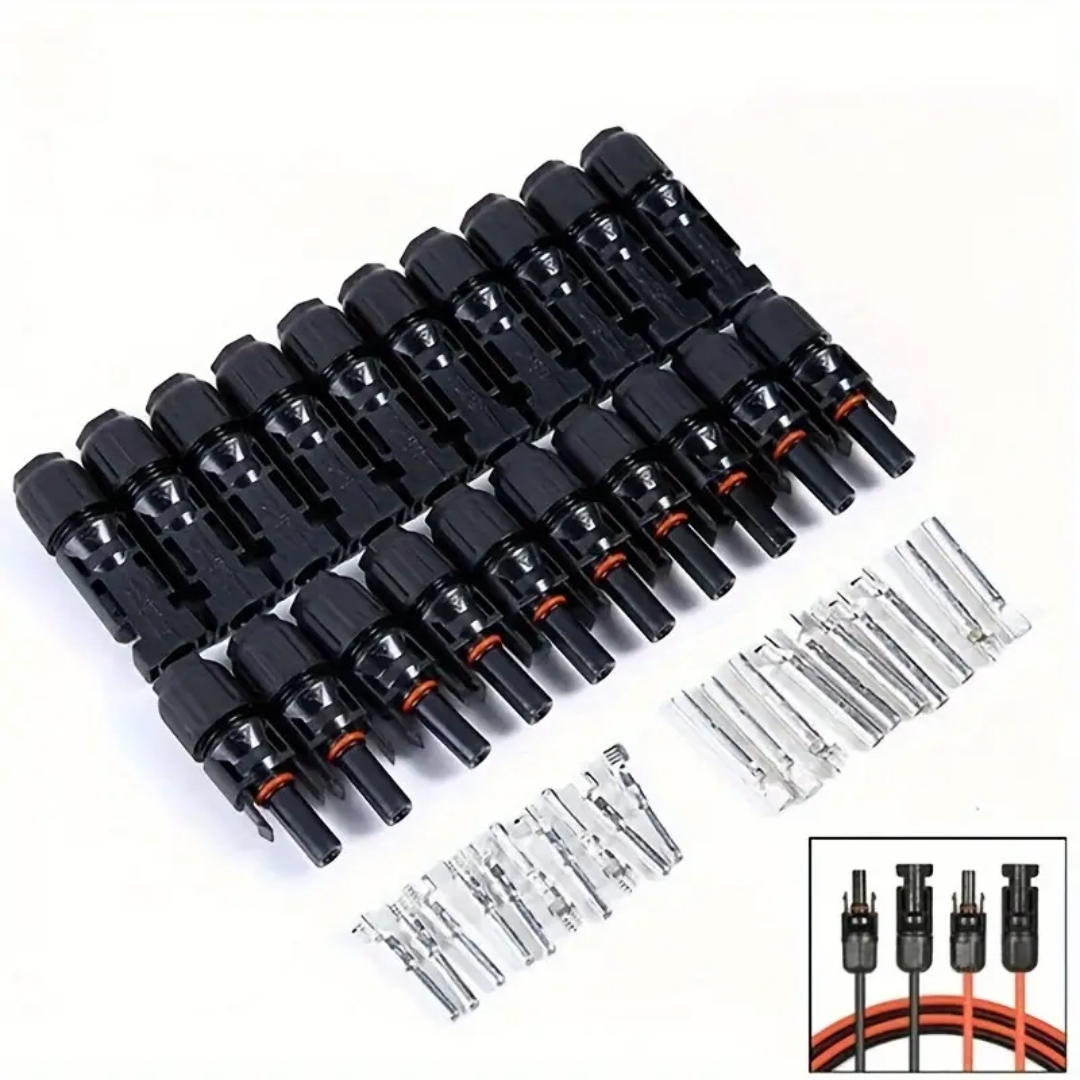

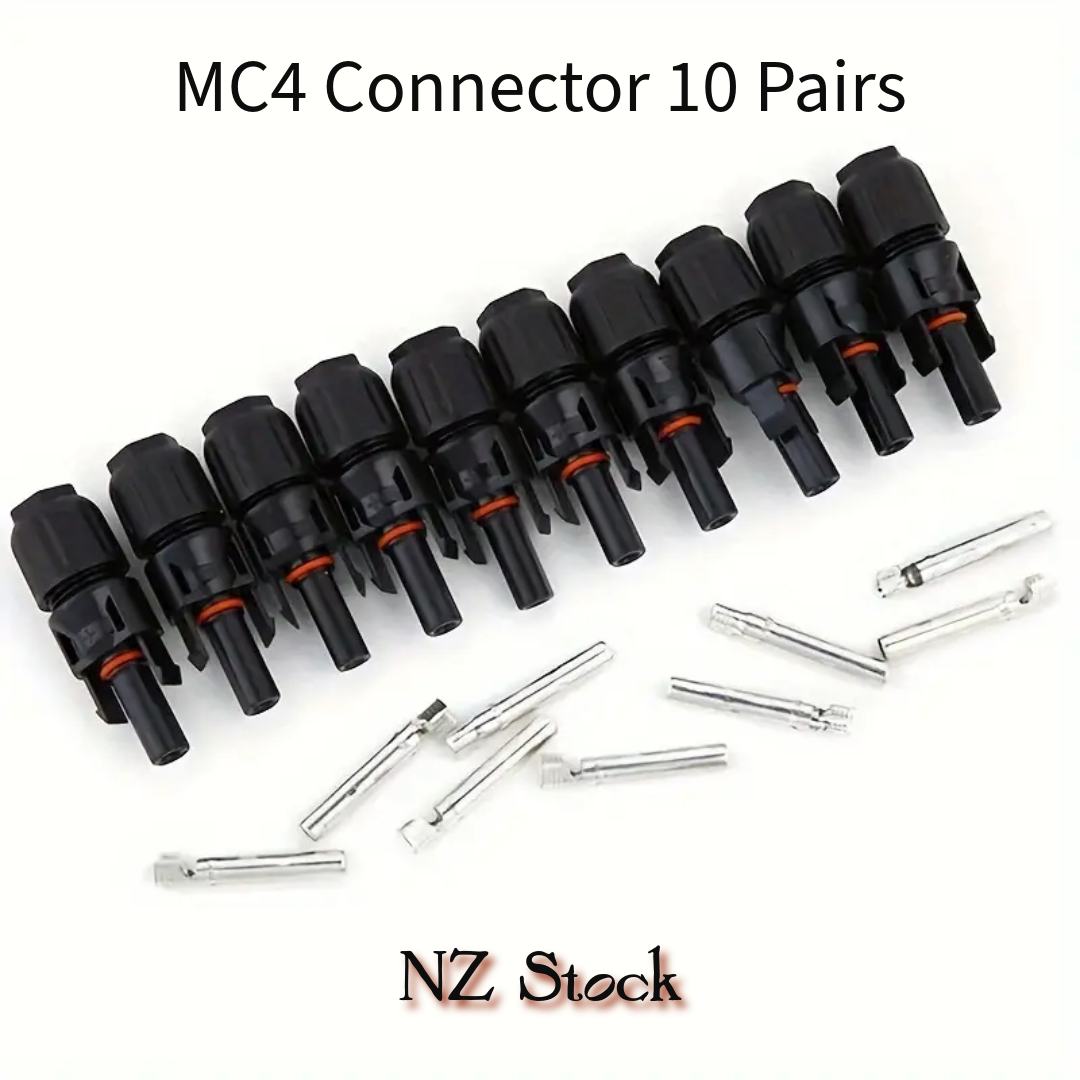

10 Pair MC4 Solar Panel Connectors Male Female

M-C-4 solar connector. The conductor pin is tin-plated. Copper: It makes a solid connection after crimping the pin to the wire. These are perfectly operated under heavy loads

Technical specification: rated current: 30 A, rated voltage: DC1000 V, flame retardant level: UL94-V0, ambient temperature: -40 °C ~ + 90 °C.

High-strength insulating waterproof silicone ring, waterproof, dustproof and UV resistant IP67 cable, TUV approved.

The housing is made of high-strength PPO plastic, durable, radiation-resistant, low temperature resistant, high strength, impact resistant and flame retardant.

Plugs and sockets have a sturdy self-locking system and are easy to put in and take off. Solar M-C-4 male / female compatible with PV cables with different insulation diameters (2.5 m 2.5 - 6 m㎡ / 14AWG - 10AWG)

Features:
- High strength PPO, high heat resistance, low flammability, wear resistance, and pollution resistance.

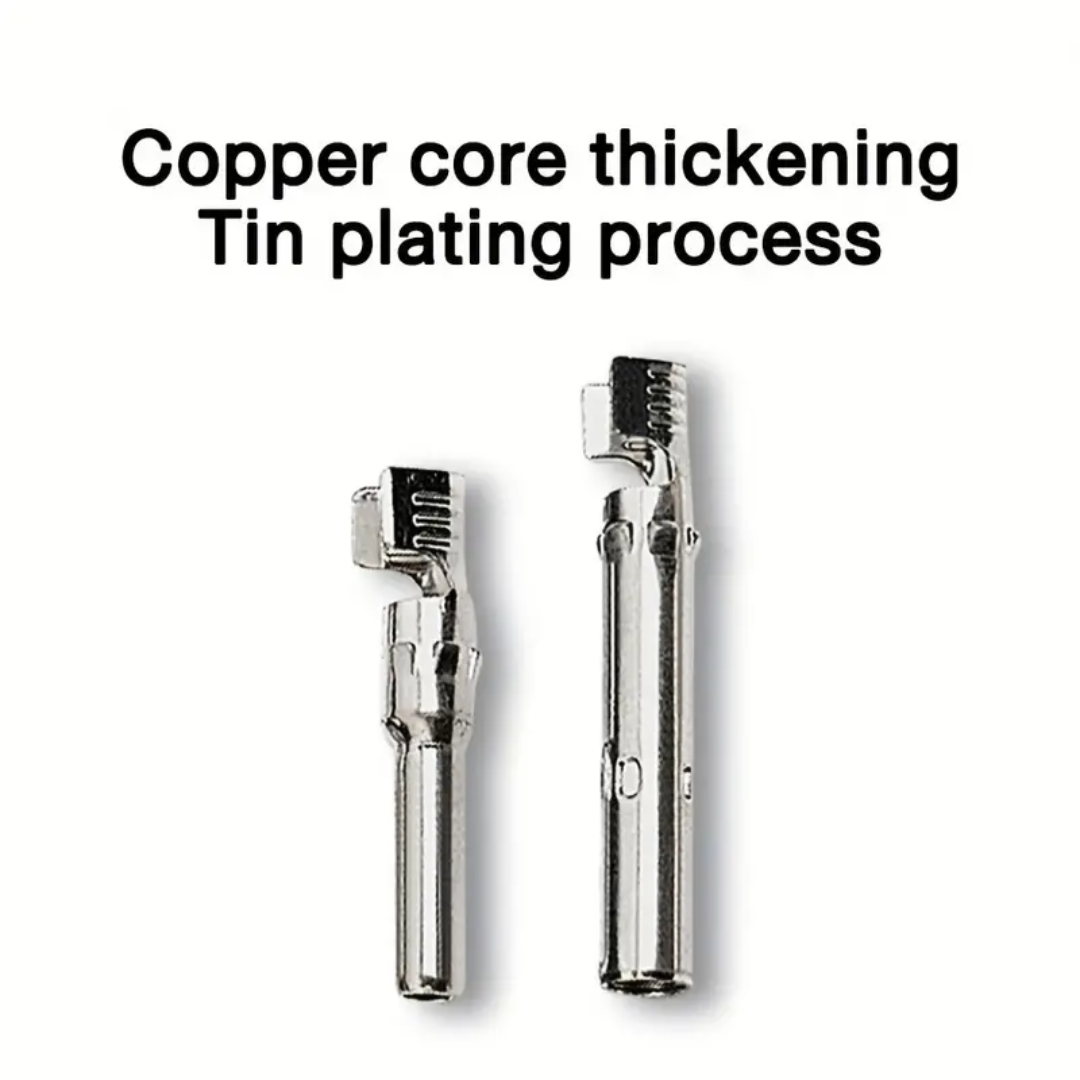

- Thickened copper tin plated material, open type, convenient for wiring.
- Adopting high-quality waterproof ring design, waterproof and dustproof, with a waterproof grade of IP67.
- The head of the product contact is equipped with guiding insulation components to guide and prevent electric shock.

Specifications:
Plug Type: MC-4
Cable conductor: tin-plated copper.
Case material of M-C-4: PPO
Operating current: 30 A.
Dielectric strength: DC1000V.
Contact resistance of M-C-4: ≤ 0.35 mΩ.
Insulation resistance: > 500 MΩ.
Ambient temperature: -40°C ~ + 90°C.
Protection class: IP67.
Safety level: DC II.
Insertion force: ≤ 50N.
Retraction force: ≥50N.
Flame protection level: UL94-V0

Package Includes:

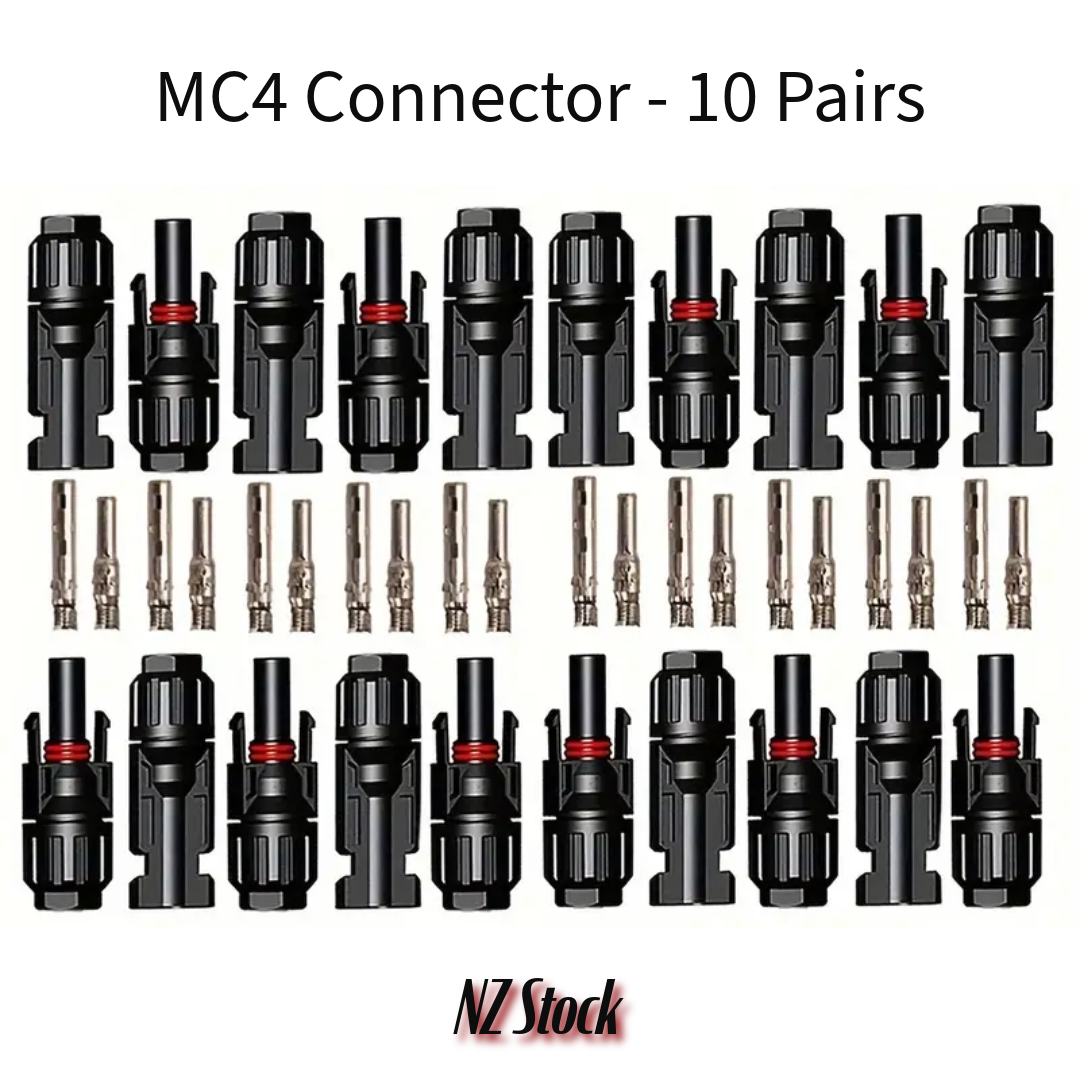

10 x solar panel connectors (male and female)
10 x solar connector pins (male and female)
