Electric Fuel Pump 12V

12V Electric Fuel Pump – Low Pressure Inline Self-Priming Fuel Pump

Upgrade or replace your existing fuel delivery system with this 12V Electric Fuel Pump, designed for carburettor-equipped vehicles, boats, generators, lawn mowers and other compatible 12V applications. This 12V Electric Fuel Pump provides reliable low-pressure fuel transfer and consistent fuel flow to help support smooth engine operation.

Features:

• Reliable 12V Electric Fuel Pump for compatible low-pressure fuel systems
• Self-priming 12V Electric Fuel Pump design for easier fuel transfer
• Suitable as an external inline 12V Electric Fuel Pump
• Helps provide consistent fuel delivery to the engine
• Low-pressure 12V Electric Fuel Pump with 2.5–4 PSI shut-off pressure
• Flow rate up to 90L/H
• Output rated at approximately 20–30 GPH
• Full copper winding motor construction
• Low operating current of approximately 1–2A
• Standard 5/16” (8mm) pipe fittings
• Compact 12V Electric Fuel Pump design for convenient installation
• Suitable for many carburettor-equipped vehicles
• Can be used as a replacement 12V Electric Fuel Pump where specifications match
• Includes an inline self-priming fuel filter
• Strong and practical 12V Electric Fuel Pump for cars, trucks, boats and generators
• Designed for continuous fuel transfer in suitable applications
• External 12V Electric Fuel Pump installation allows easy servicing and replacement
• Helps address fuel delivery problems caused by a weak or failed compatible pump

Cross Reference:

This 12V Electric Fuel Pump may cross-reference with the following numbers:

• EP12S
• E8012S
• FD0002
• P60430
• 6414671

Specifications:

• Product Type: 12V Electric Fuel Pump
• Voltage: 12V
• Current: 1–2A
• Flow Rate: 90L/H
• Output: 20–30 GPH
• Shut-Off Pressure: 2.5–4 PSI
• Pump Type: Plunger Type
• Priming Type: Self-Priming
• Motor Winding: Full Copper Winding
• Hose / Pipe Fitting Size: 5/16” / 8mm

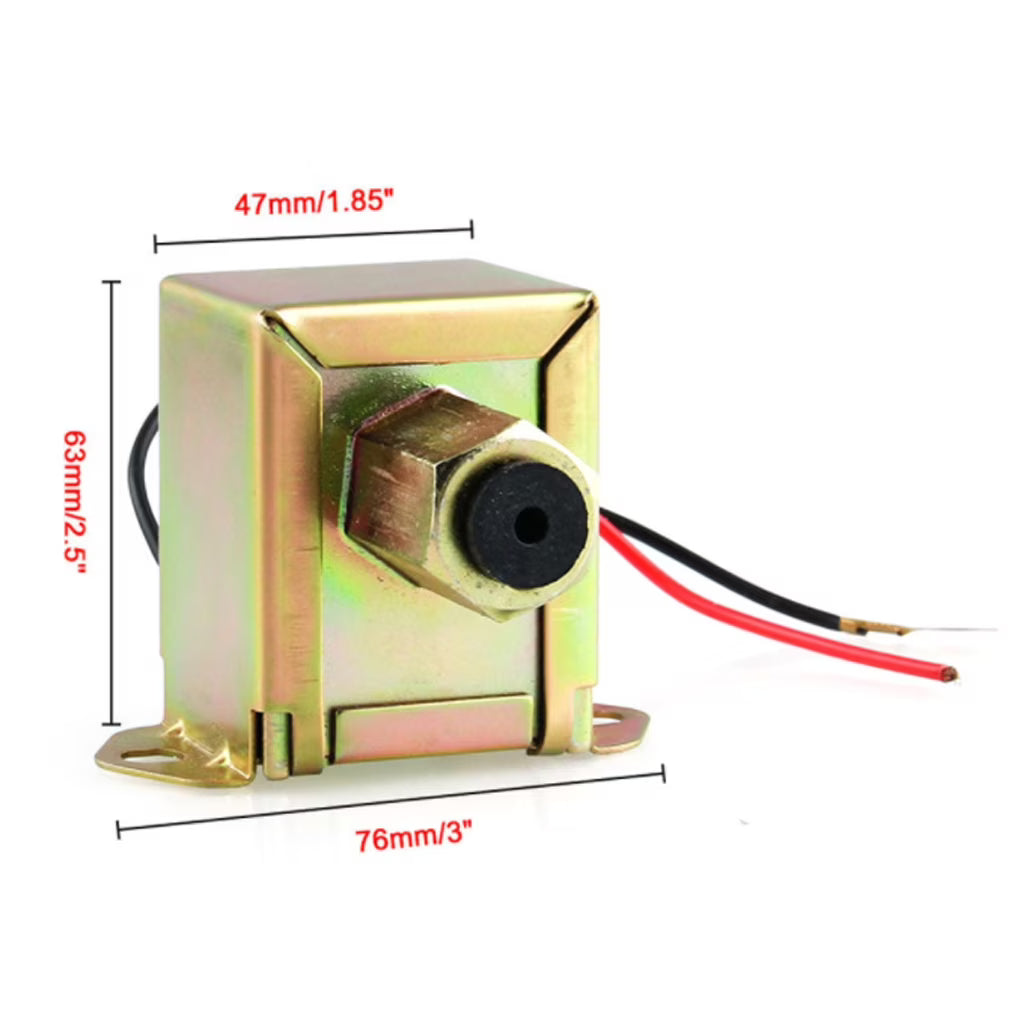

• Mounting Hole Distance: Approx. 6.7cm / 2.64”

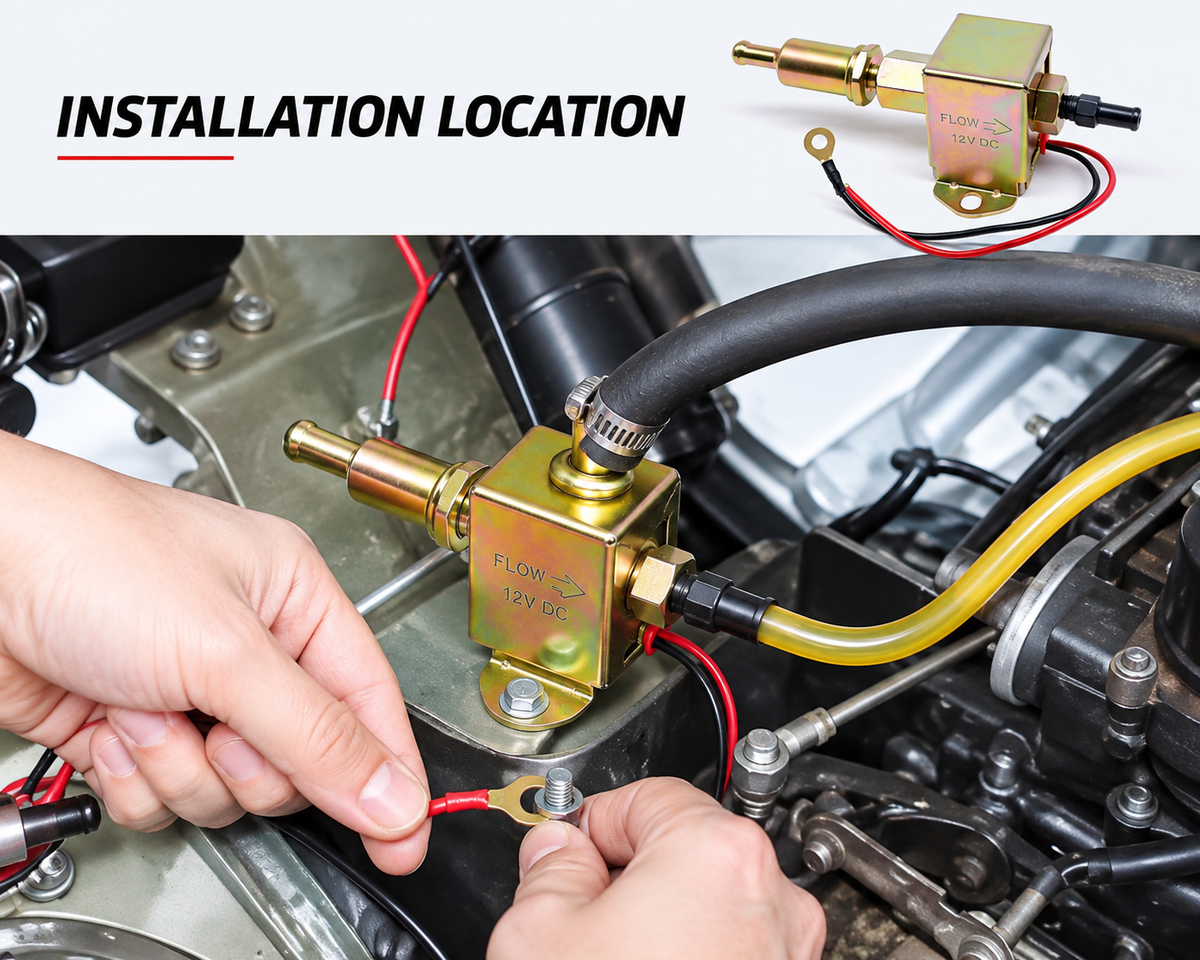

• Installation Type: External Inline 12V Electric Fuel Pump
• Fuel System Type: Low-Pressure Carburettor Applications
• Fittings: Standard 5/16” (8mm) Pipe Fittings

Applications:

• Cars using a compatible 12V Electric Fuel Pump
• Trucks with low-pressure carburettor fuel systems
• Boats requiring an external 12V Electric Fuel Pump
• Generators using compatible 12V fuel delivery systems
• Lawn mowers where the fuel system specifications match
• Performance carburettor applications
• Replacement carburettor fuel systems
• Toyota applications requiring a compatible 12V Electric Fuel Pump
• Ford applications requiring a compatible 12V Electric Fuel Pump
• Honda applications requiring a compatible 12V Electric Fuel Pump
• Mazda applications requiring a compatible 12V Electric Fuel Pump
• Other suitable 12V vehicles and equipment

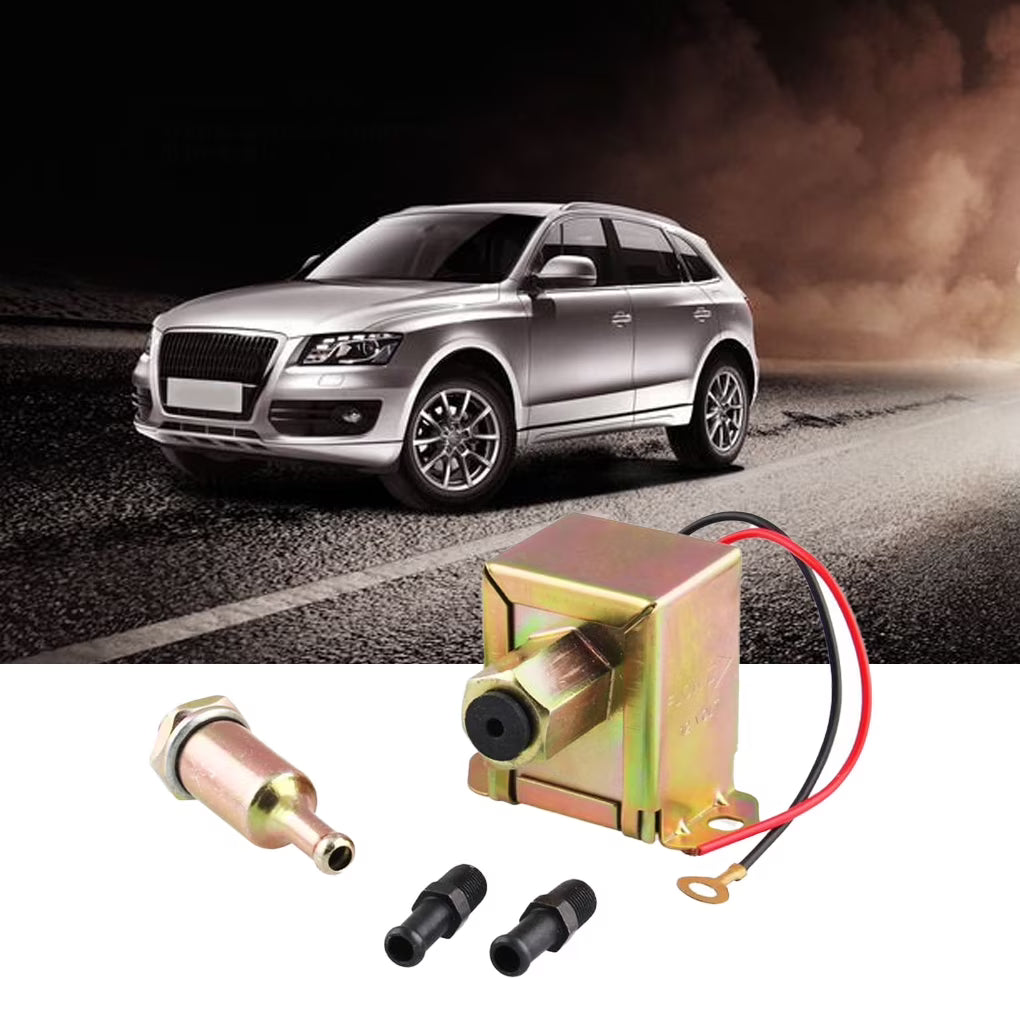

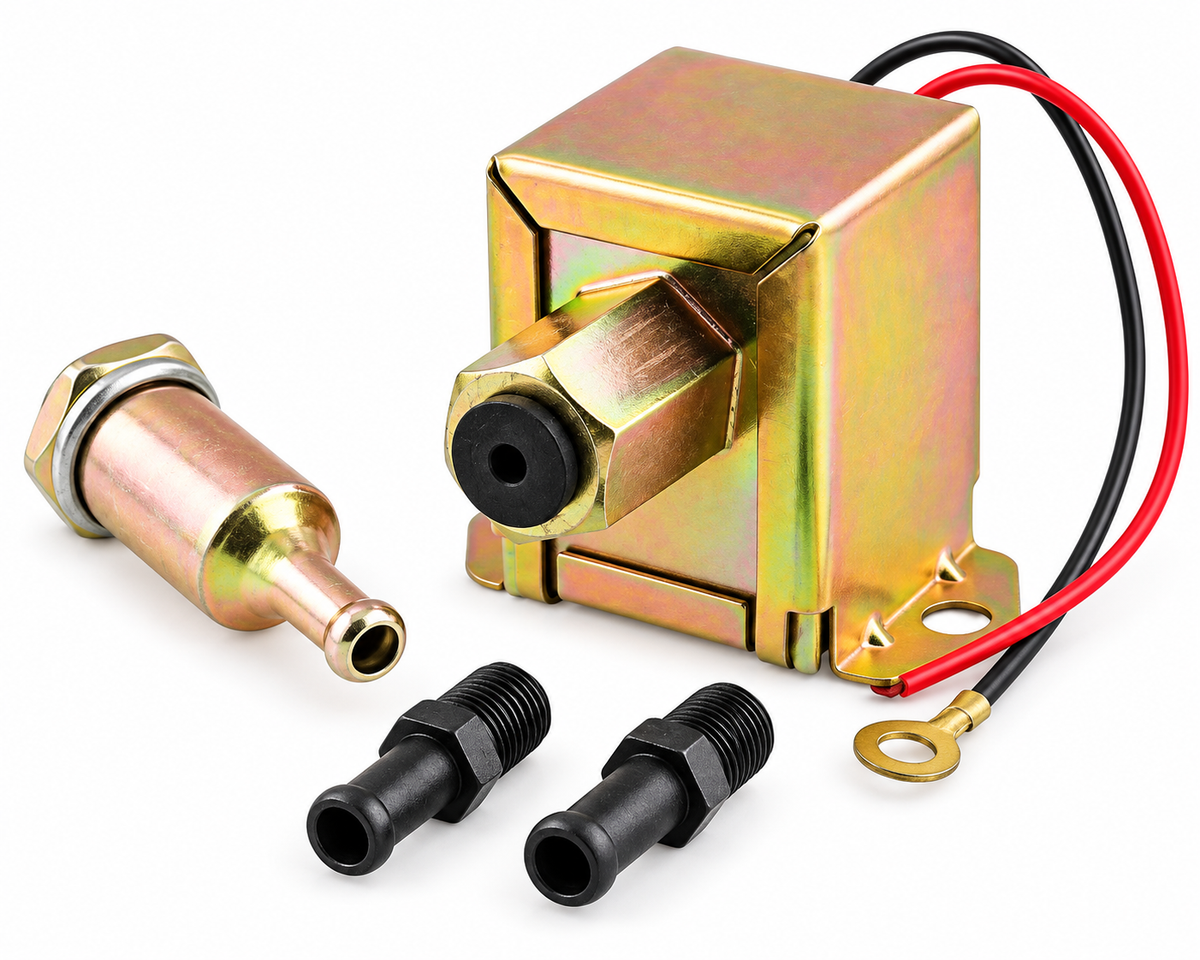

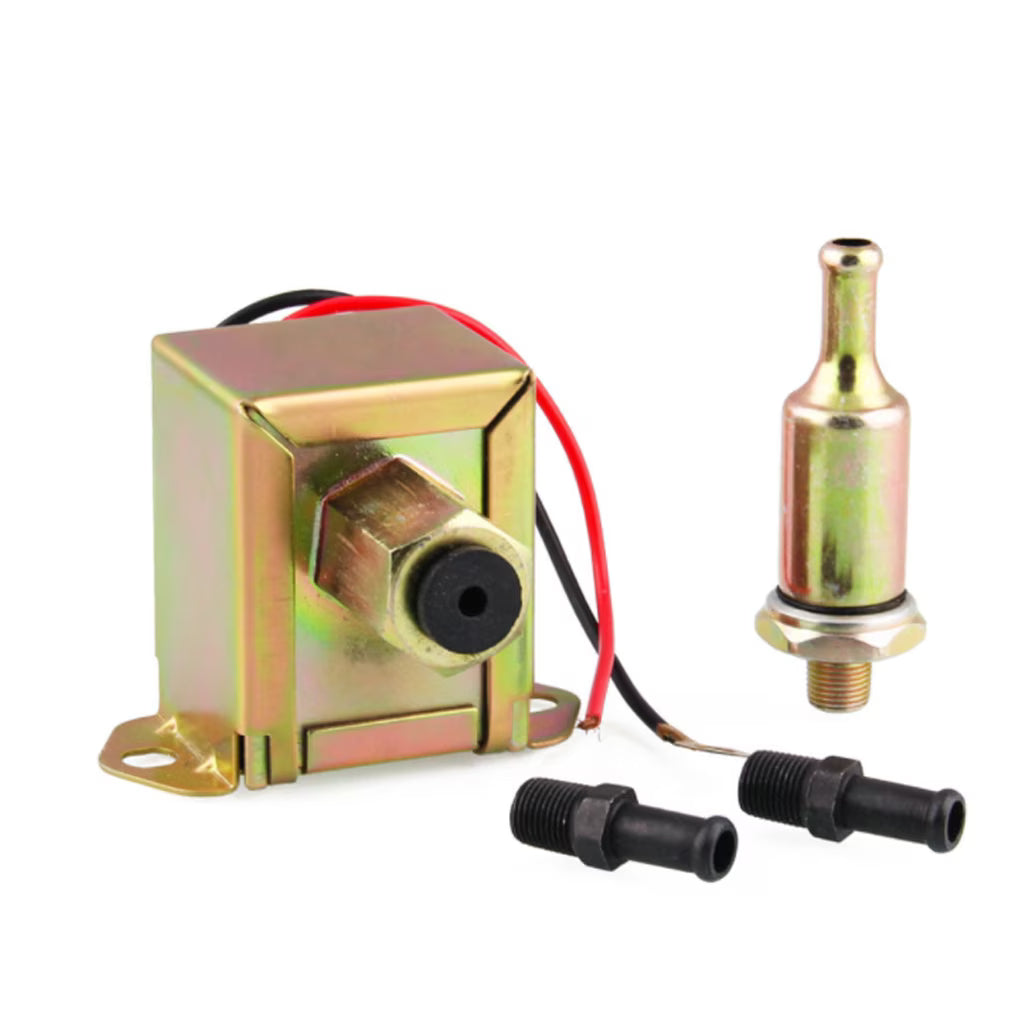

Package Includes:

• 1 × 12V Electric Fuel Pump
• 2 × Standard 5/16” (8mm) Pipe Fittings
• 1 × In-Line Self-Priming Fuel Filter

This 12V Electric Fuel Pump offers a practical replacement solution for many low-pressure carburettor applications. Before ordering the 12V Electric Fuel Pump, please compare your existing pump specifications, pressure rating, voltage, fittings and cross-reference number to ensure correct compatibility.
