Electric Motor 2HP 2800RPM

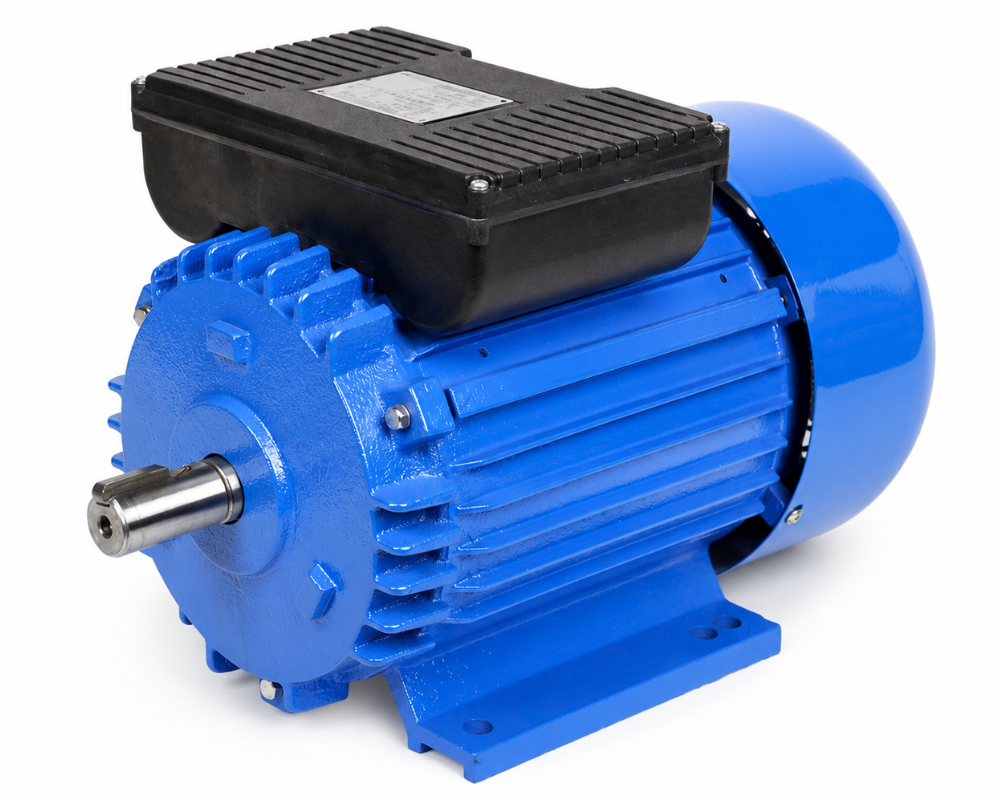

Electric Motor 2HP 1.5KW 2800RPM Single Phase Electric Motor

The Single Phase Electric Motor is a high-performance capacitor-start and capacitor-run motor designed for reliable, continuous operation across a wide range of industrial, agricultural, and commercial applications. Manufactured with a durable cast aluminium housing and precision-engineered copper windings, the Electric Motor delivers excellent starting torque, smooth operation, and long service life.

Features:

• High Starting Torque: Capacitor start and capacitor run design ensures reliable motor starting under heavy loads.
• Pure Copper Windings: Provides higher efficiency, improved conductivity, and longer motor lifespan.
• Durable Aluminium Housing: Corrosion-resistant cast aluminium body offers excellent heat dissipation.
• Quiet & Smooth Operation: Precision-balanced rotor reduces vibration and operating noise.
• Overload Protection: Built for continuous-duty operation with reliable thermal performance.
• Easy Installation: Standard foot-mounted base for quick installation and replacement.
• Low Maintenance: Sealed bearings and robust construction minimise servicing requirements.

Applications:

• Water Pumps
• Pressure Pumps
• Air Compressors
• Irrigation Systems
• Agricultural Equipment
• Workshop Machinery
• Fans & Blowers
• Food Processing Equipment
• Small Industrial Machinery
• General Purpose Power Transmission

Specifications:

• Motor Type: Single Phase Induction Motor
• Model: YL90L-2
• Output Power: 1.5kW (2HP)
• Rated Voltage: 220V AC
• Frequency: 50Hz
• Rated Current: 9.4A
• Rated Speed: 2800 RPM
• Shaft Size: 24mm
• Shaft Length: 50mm
• Efficiency: 77%
• Power Factor: 0.95
• Starting Torque: 1.7
• Starting Current: 6.0
• Maximum Torque: 1.7
• Frame Size: 80 Frame
• Number of Poles: 2 Pole
• Housing Material: Cast Aluminium
• Winding Material: 100% Copper
• Cooling Type: Totally Enclosed Fan Cooled (TEFC)
• Mounting Type: B3 Foot Mount
• Duty Rating: Continuous Duty (S1)
• Protection Rating: IP54
• Insulation Class: Class B
• Rotation: Reversible (Clockwise / Counter-clockwise)

Package Includes:

• 1 × Single Phase Electric Motor
• 1 × User Manual
