SPA Pool Inline Thermostat H15-R1 Hydromassage Bathtub

Spa Swimming Pool Thermostat 1.5kW – H15-R1 | 230V | Thermostat Control | 40mm Connection

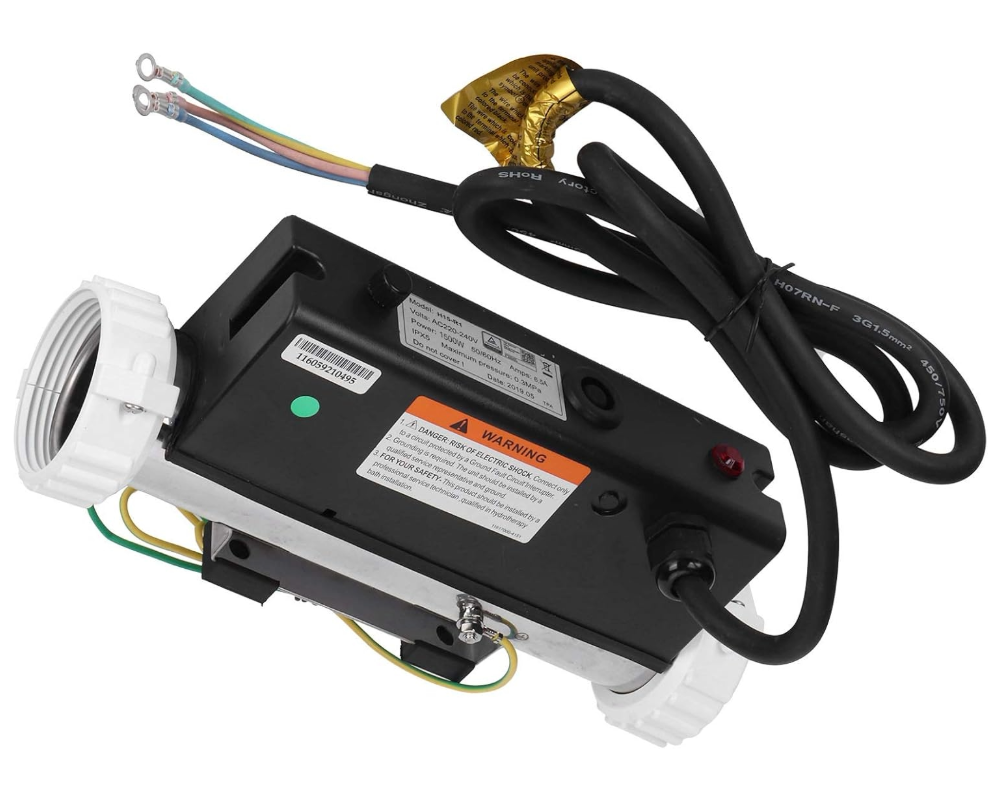

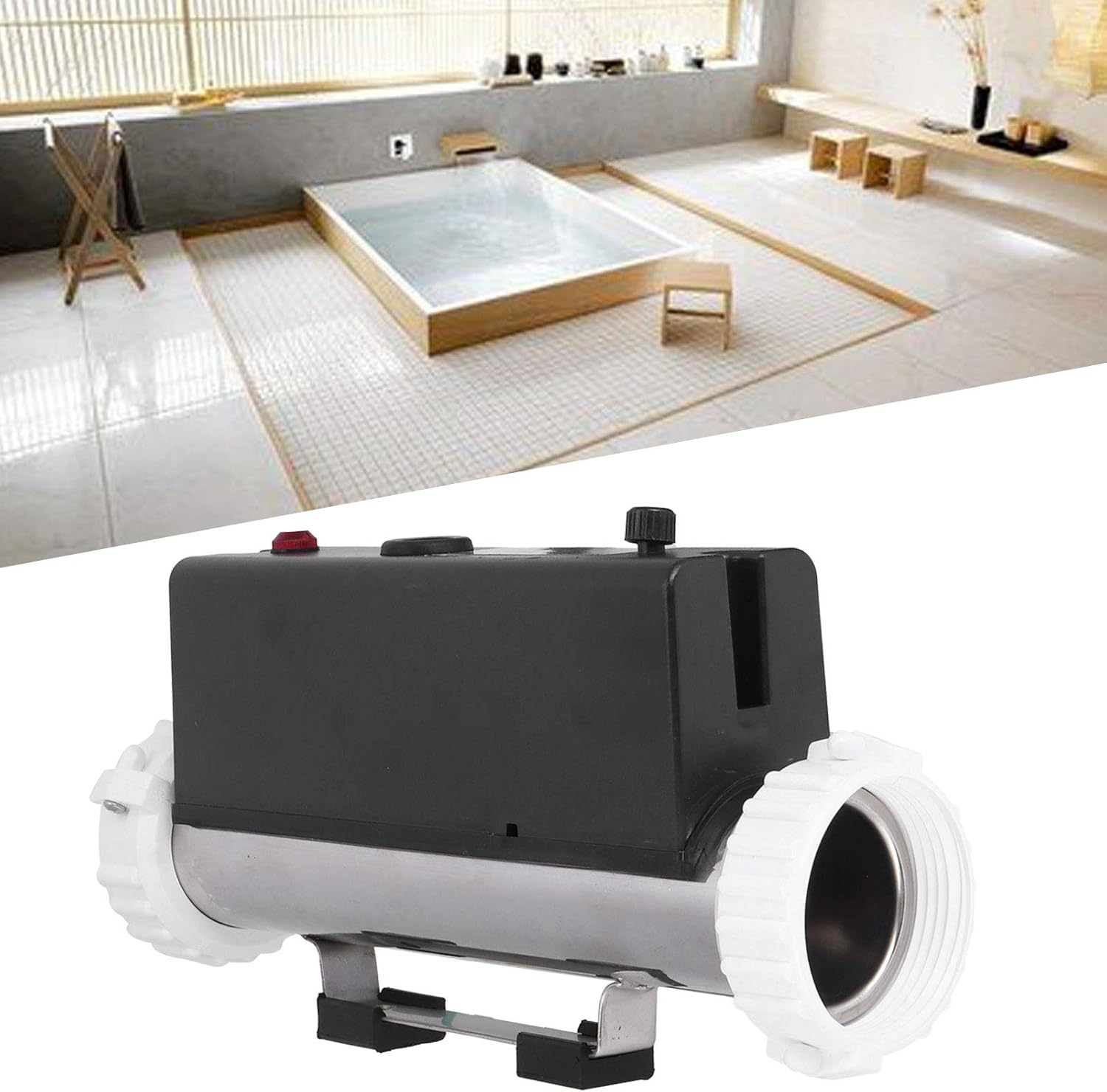

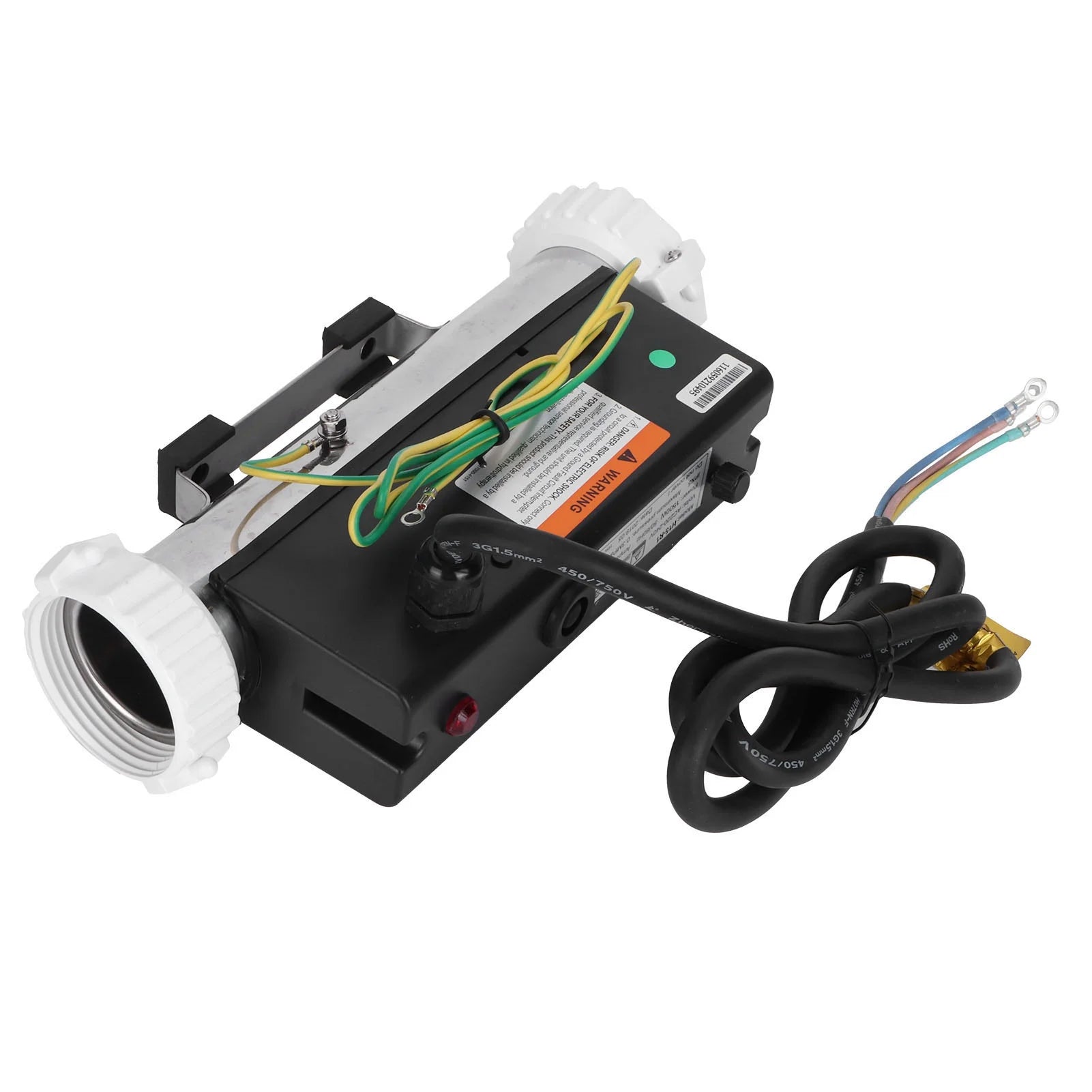

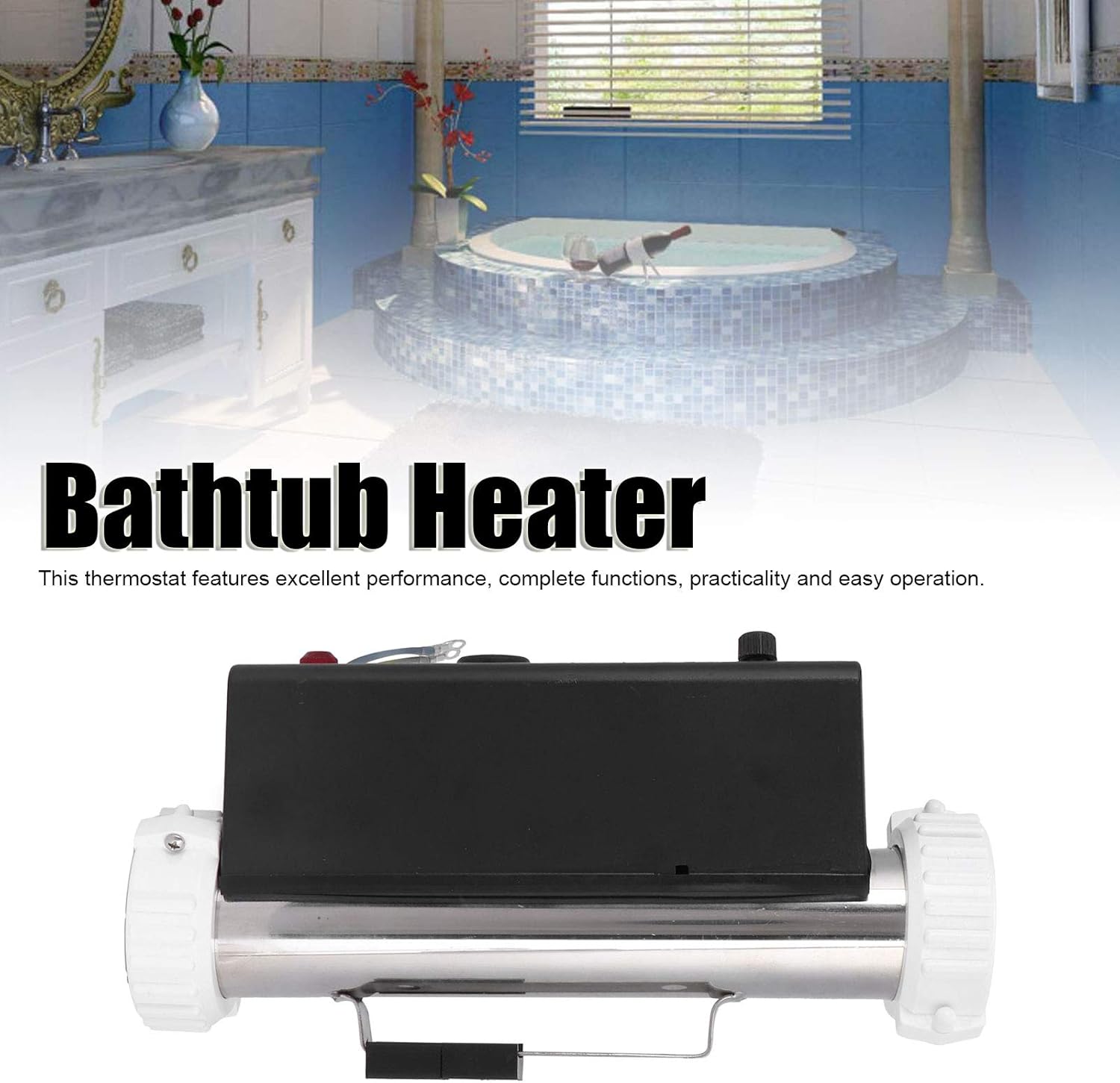

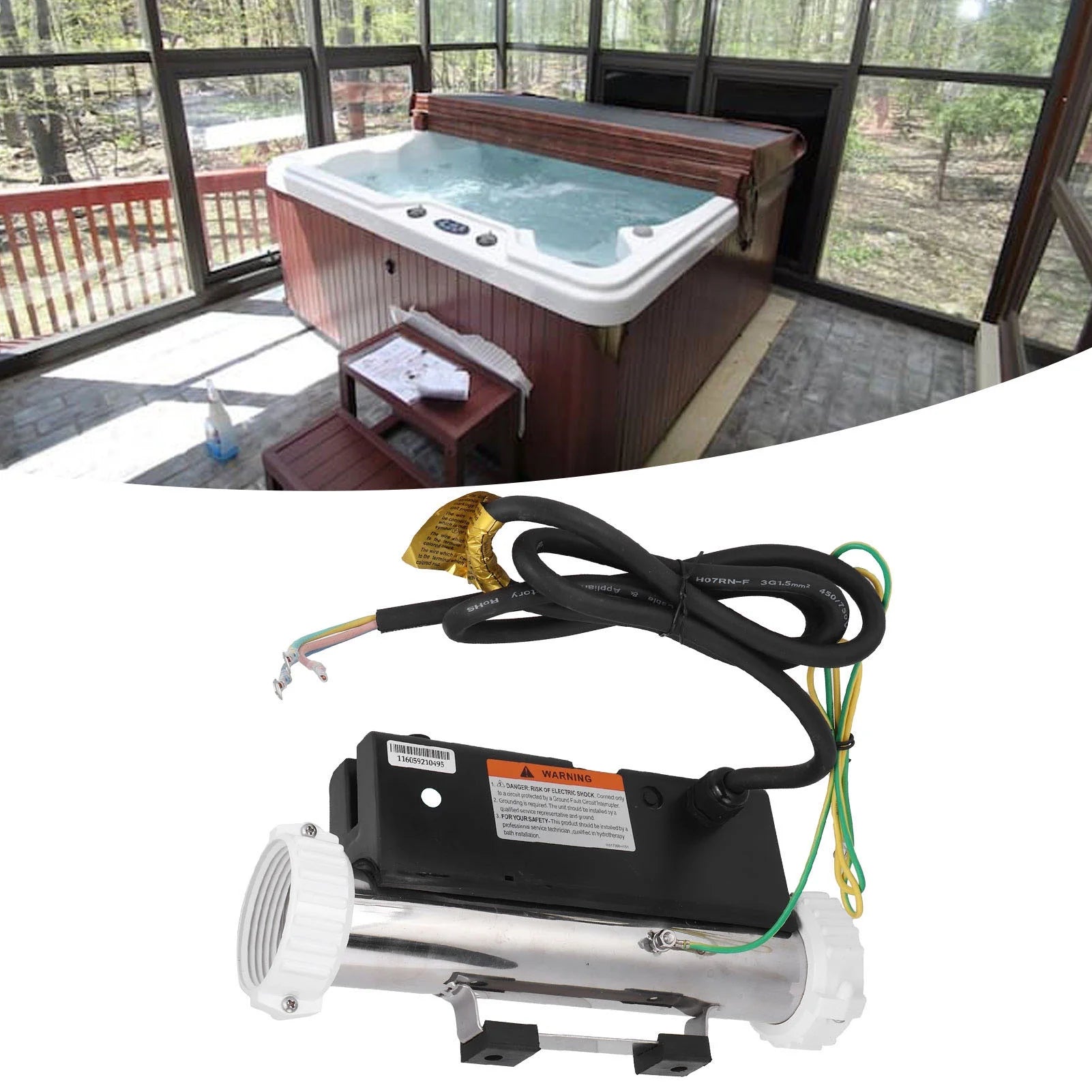

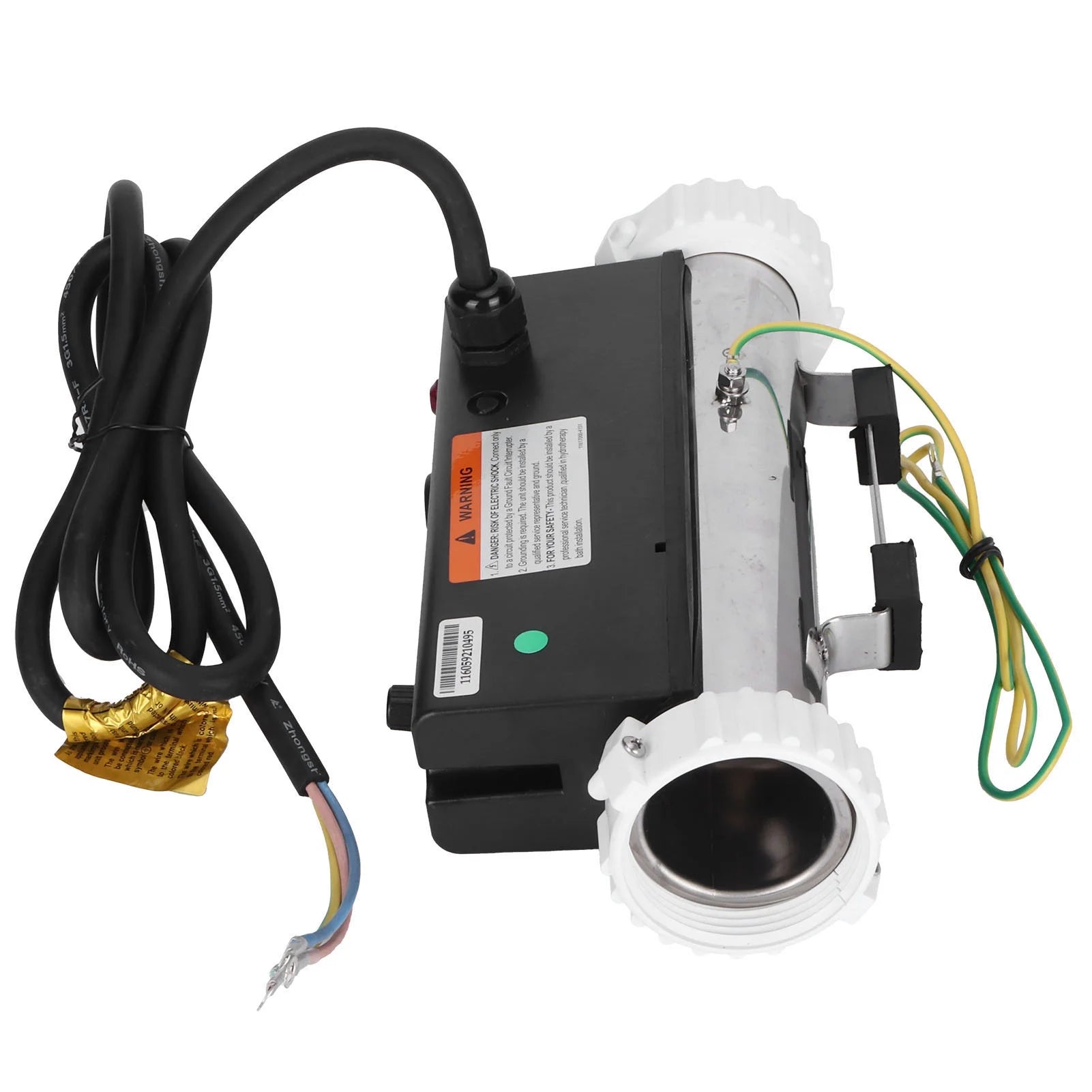

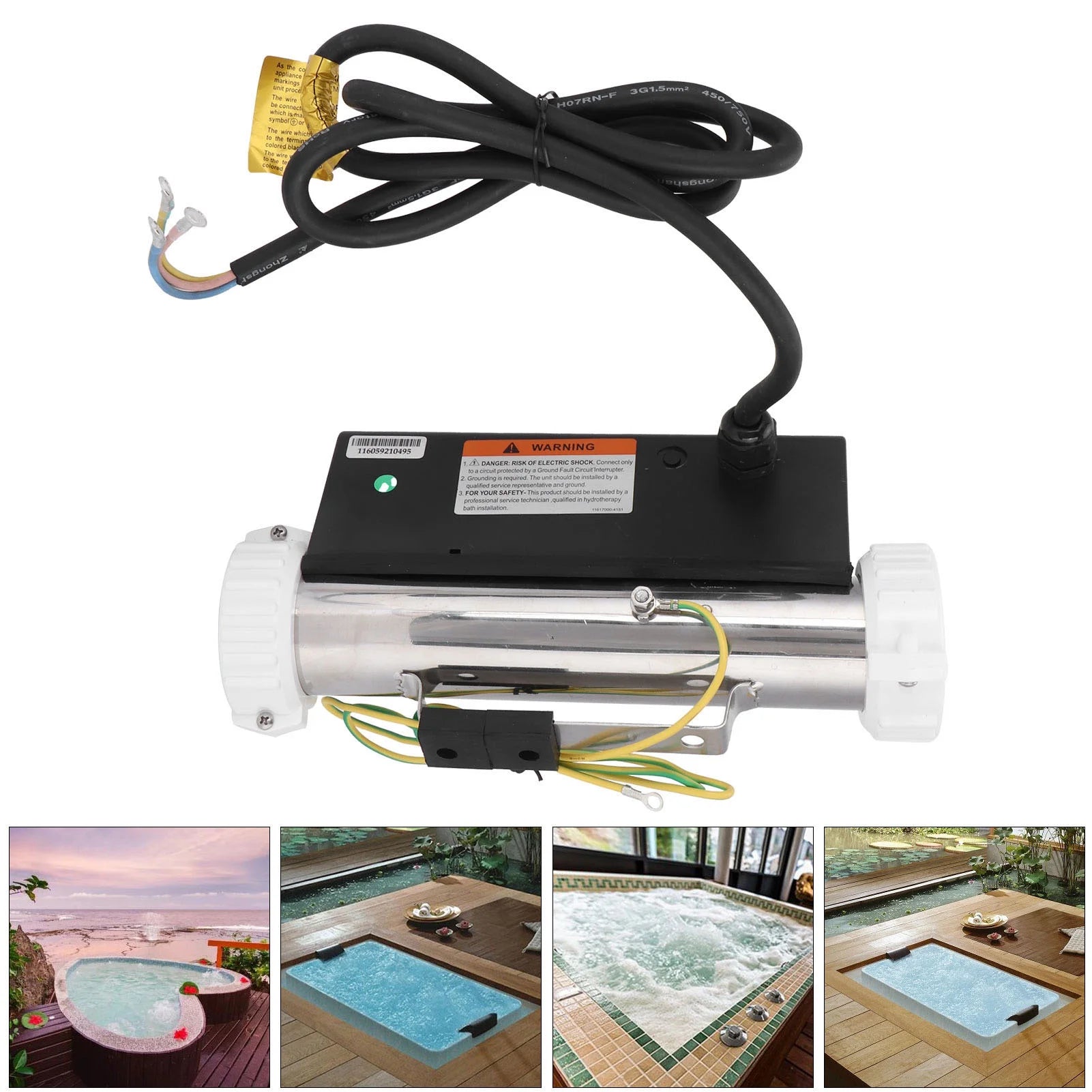

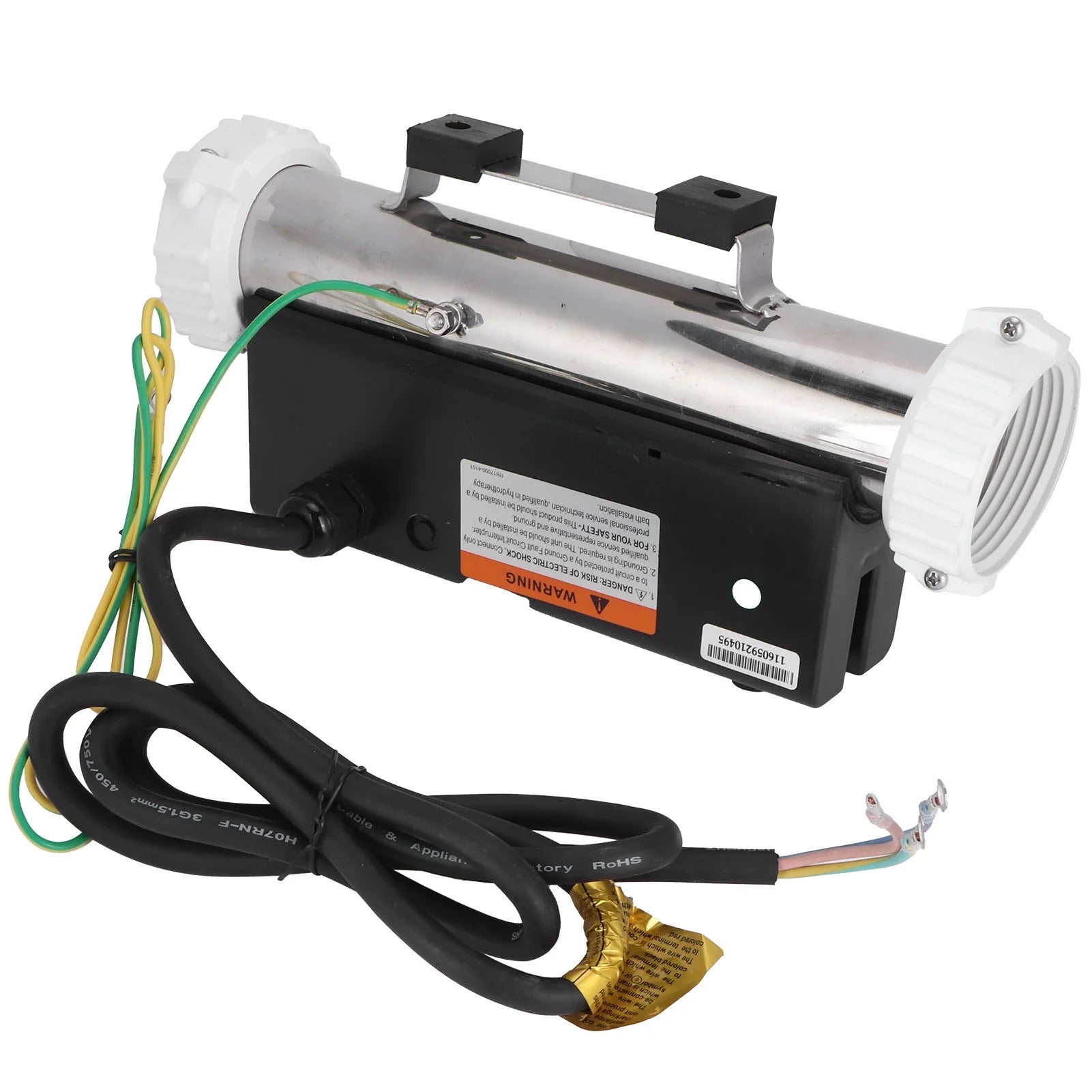

This spa pool Thermostat is designed for heating water in spa systems, small pools, and hydromassage setups. The unit includes a heating element, thermostat control, and flow-based operation system, and is intended for use with compatible circulation pumps and plumbing systems.

Features:

• Temperature Control Function
  The Thermostat operates based on a preset temperature. The system cycles on and off according to water temperature conditions.
• Flow-Based Operation
  Includes a pressure switch that allows operation only when sufficient water flow is present within the system.
• High Temperature Cut-Off
  The unit includes an internal temperature cut-off mechanism that activates if the temperature exceeds the operating limit.
• Heating Element Construction
  Includes a metal pipe heating element housed within a stainless steel casing.
• Electrical Connection
  Designed for connection to a 230V power supply. Installation may require appropriate electrical setup depending on application.
• Compact Housing Design
  The Thermostat body is designed for installation within spa systems where space may be limited.
• Pipe Connection Compatibility
  Supplied with fittings suitable for 40mm (1.5") PVC pipe systems.

Applications:

• Spa pool heating systems

• Hydromassage bathtubs

• Small pool heating setups

• Hot tub systems

• Water circulation heating systems

Specifications:

• Model: H15-R1

• Power: 1.5 kW

• Voltage: 230 VAC

• Frequency: 50/60 Hz

• Current: 6.5 Amps

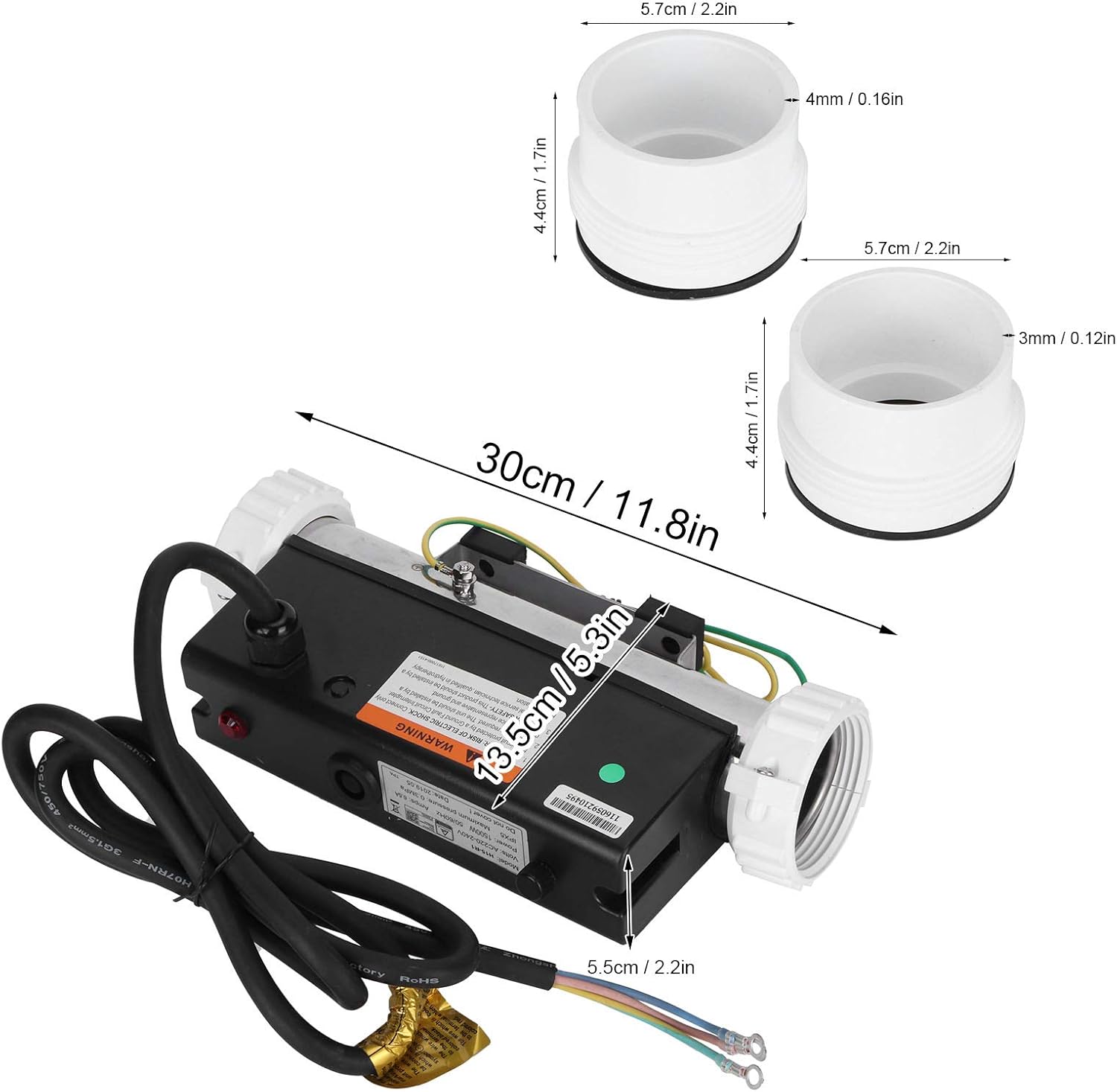

• Dimensions: 340 × 110 × 50 mm

• Packing Size: 360 × 175 × 155 mm

• Weight: 1.8 kg

• Cable Length: 1.5 m (3-pin plug)

• Connection Size: 40 mm / 1.5″ PVC Compatible

• Installation Length: 255 mm

Installation Notes:

• Install the Thermostat horizontally at the outlet side of the circulation pump
• Designed for use with compatible 40mm / 1.5″ PVC pipe systems
• Requires adequate water flow during operation
• Electrical installation should follow local requirements

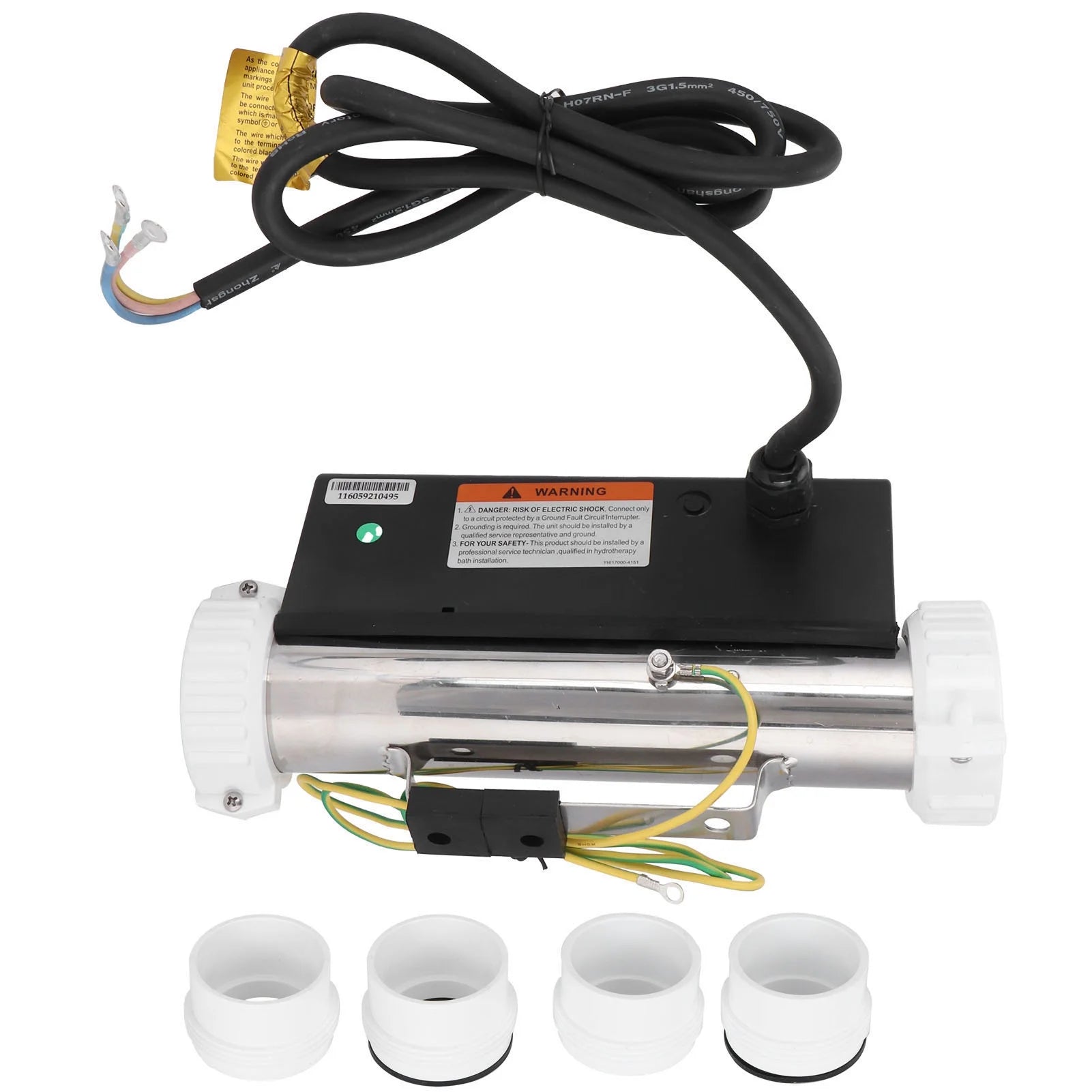

Package Includes:

• 1 × Spa Pool Thermostat (H15-R1)

• 2 × Connection Fittings (Barrel Unions)

This spa pool Thermostat is designed for integration into compatible spa and pool systems with appropriate plumbing and electrical setup.
